US$3,500.00-4,000.00
|
1 Set
(MOQ)
|
Basic Info.
Number of Shaft
Customized Option
type

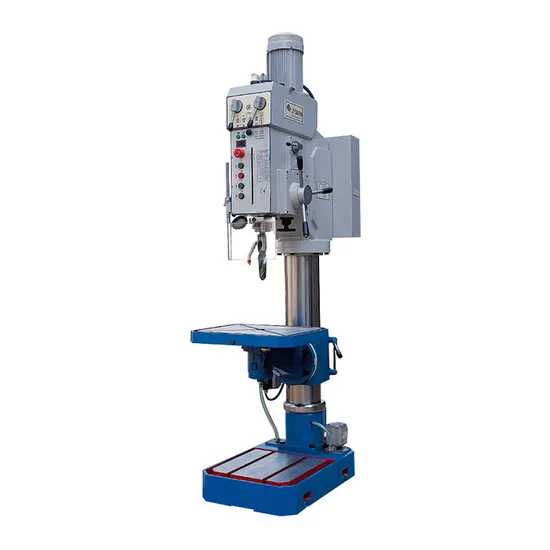

vertical Drilling Machine
Max. Drilling Dia. (mm)
50 mm
Key Selling Points
High Productivity
Spindle speed range
52-1400RPM
Dimension(L*W*H)
940X680X2405mm
Transport Package
Plywood Case in Carton
Specification
940x680x2405mm
Production Capacity
50 Set/Sets Per Month
Product Description
Specifications:
| Model | ZN5050A |
| Max. drilling diameter.steel ) and tapping diameter | φ50/M27 |
| Max.travel of spindle | 200 |
| Max.distance from spindle to generating line of column | 360 |
| Max.distance between spindle end to the worktable surface. | 590 |
| Max.distance from spindle end to the surface of base worktable | 1175 |
| Max. travel of worktable and bracket | 530 |
| Swivel angle of worktable | ±45° |
| Spindle taper bore | MT4 |
| Spindle speed steps | 12step |
| Spindle speed range | 52-1400 |
| Spindle feed steps | 4 (12step) |
| Spindle feed range | 0.1-0.4 |
| Dimension of worktable | 580×460 |
| Effective working area of worktable | 445×435 |
| Power of motor | 2.2 |
| Max machine dimension | 940×680×2405 |
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
