Product Description
Product Description

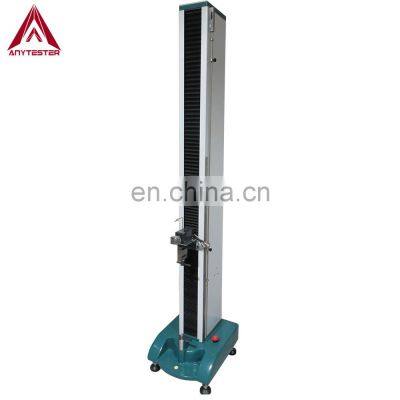

Product DescriptionHY065C Electronic Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials, such as yarn, fabric, geotextile.StandardASTM D3787, 4964,5034, 5035ISO13937, ISO 5081DIN 53859, DIN 53858BS3320, BS4303, BS2576GB/T 3923.1, GB/T 3917JIS L1096Note: For more standards, please contact usSpecificationModelHY065CLoad range120N, 3000N, changeableGauge length25~500mm, adjustableTensile speed2mm/min～1200mm/min, settableReturn speed2mm/min～1000mm/minTiming stretch20s±3s, 30s±5sTest times99times max.Elongation range350% max. while set 200mm gauge lengthPower supplyAC220V±10%, 50HzDimensions380mm×480mm×1450mm (L×W×H)Weight122kgDetails & Features★ It is not only used for fabric test (standard configuration), but also for lea yarn test with larger tensile space (optional configuration)★ Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing ★ Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.Figure 1: On-line software interfaceFigure 2: On-line test interface★ The test report can be printout★ With two load ranges for one machine to satisfy different test requirement and ensure the accuracy★ Various clamps can be optional to perform different test standardsOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
