2 Layer Blow Molding Machine

US$8,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BSJ-2L600
Maximum Folding Width of Film
1200mm
Screw Diameter
55*2
Automation
Automatic
Computerized
Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008
Film Thickness
HDPE: 0.008-0.10mm
Film Width
1200mm
Die Heads Size
Diameter 350mm
Inverter Brand
Eura or Delta Brand
Motor Brand
Wannan or Siemens Brand
Electric Brand
Schneider or Chnt Brand
Gearbox Brand
Shuguang Brand
Machine Guarantee
1 Year
Service Support
10 Years
Transport Package
Container
Specification
4.5 X2X5m
Trademark
BOSEN
Origin
Ruian City Zhejiang China
HS Code
8477301000
Production Capacity
30sets/Months

Product Description

Product Description

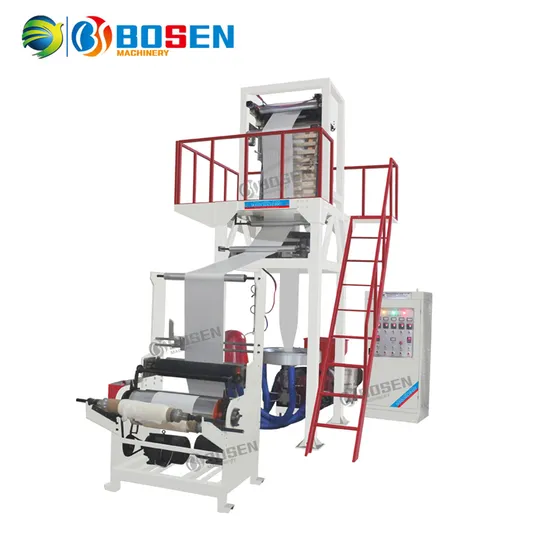

BSJ-2L Film Blowing Machine
It is used for blowing PE(HDPE LDPE LLDPE) film, which is widely used for water package bag , laminating film, packing film, agriculture film, film for textile, clothing bag,etc.
Detailed Photos
Product Parameters
Model BS-2L1200 BS-2L1500 BS-2L2000
Suitable Material LDPE LLDPE HDPE
Max Film Width(mm) 1200 1500 2000
Film Thickness(mm) LD:0.02-0.15
Max Extrusion Output 80kg/hr 130kg/hr 180kg/hr
Extrusion unit
Gear Box 146×2 173×2 200×2
Screw Diameter(mm) φ50×2 φ55×2 φ65×2
Screw L/D Ratio 28:01:0
Screw's Material 38 CRMOALA
Barrel's Material 38 CRMOALA
Barrel's Cooling Fan 250W×2×2 370×2×2 370×3×2
Thermo Control (zone) 3×2 3×2 4×2
Driving Motor (kw) 15×2 22×2 30×2
Extrusion Die
Die Size (mm) LD:φ250 LD:φ350 LD:φ500
Rotary Die Head 360°Continue Rotary 360
Thermo Control (zone) 3 3 4
Air Ring 1PCS
Cooling Blower (kw) 4 5.5 7.5
Take-UP Unit
Roller Width (mm) φ165×1300 φ165×1600 φ190×2100
Take-UP Motor (kw) 1.5 1.5 2.2
Take-UP Speed(M/min) 5-60 5-60 5-60
Winding Unit
Type OF Winder Surface Friction Double Winders
Roller Width (mm) 1300 1600 2100
Winding Motor 16N.M 1.5kw 1.5kw
Winding Speed(M/min) 5-60 5-60 5-60
Voltage 380V 50Hz 3PHASE
Cover Dimensions (m) 6.5×2.3×6.5 6.8×2.6×7 7×3.2×7

Certifications
Packaging & Shipping
Company Profile
FAQ
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
