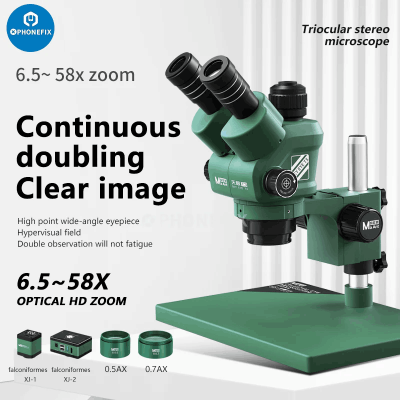

MaAnt SKY EYE T3 Trinocular Stereo Microscope 6.5-58X Optical HD Zoom with WF 10X/23 Wide Angle Eyepiece, CTV Lens, Smoke and Dustproof 26 LED Light and HDMI 4K Camera. Professional micro soldering tool electric microscope, used for mobile phone motherboard PCB SMD BGA chip welding and desoldering repair, object observation and research, etc.
Features:
1. Focus adjustment knob, use the knob to adjust up and down, height, free lifting, precise focus adjustment to make the image clearer.
2. High-definition 6.5X-58X optical zoom, large aperture, 18MM large lens, 4-layer coating.
3. Dust-proof mirror light source, with 26 smoke-proof and dust-proof LED lights, adjustable brightness, knob adjustment, and easy operation.
4. New CTV lens adapter reduces distortion problems.
5. 45 degree tilt design.
6. 4K high-definition industrial cameras Eagle CJ-1 and Eagle CJ-2.
7. Synchronous high-definition display, 4K accurate measurement of the microscopic world. Eye observation and screen display are observed simultaneously, the picture is clear and sharp, and all details can be seen.
MaAnt T3 Standard Package:
1x 6.5-58X trinocular stereo microscope with CTV lens, 10X/23 eyepieces, 26 LED lights, 378mm*260mm*22mm stand base.
Optional:
1. 0.5X auxiliary objective lens.
2. 0.7X auxiliary objective lens.
3. Eagle XJ-1 HD camera.
4. Eagle XJ-2 4K high-definition industrial camera.
MaAnt Tianyan T3 microscope parameters:
Magnification: 6.5X-58X.
Eyepiece: WF10X/23mm.
Objective: 0.65 to 5.8X continuous magnification.
Focusing system: coarse and fine focusing knobs.
Diopter adjustment: ±5DP.
Light source: 26 LED ring lights.
Packing size: 43x34x26cm
4K HD camera parameters:
Model: Eagle XJ-1 4K camera.
Sensor: 1/2.9-inch SONY 8.29-megapixel CMOS sensor.
HDMI output: 3840*2160 60 frames, 1920*1080 60 frames.
C-mount lens: C/CS.
USB output: 3840*2160/2560*1440/1920*1080/1280*720, 640*480/424*240/320*240.
Pixel size: 1.45*1.45um.
Exposure: automatic/manual.
Exposure compensation: supported.
Midline: support.
White balance: manual/automatic, supports R, G, B adjustable.
Input voltage: DC 5V.
Lines: Supports 16 straight lines, with adjustable color, thickness and position.
Remote control unit: supported.
Model: Eagle XJ-2 4K HD industrial camera.
Sensor: SONY-IMX678, 4K.
Resolution: 3840*2160@60fps.
Output interface: HDMI+UVC synchronous output.
Pixel size: 2.0*2.0um.
Power supply: DC-12V/1A.
Basic functions: taking photos, videos, and measurements.
Grid lines: 8 horizontal and vertical lines, color thickness can be adjusted and moved.
Image quality adjustment: color, color temperature, white balance, exposure.
Camera functions: mirroring, freeze frame, flip, wide dynamic range, zoom in, zoom out, 4K video recording, 4K photography, etc.
>>
