High Throughput Low Loss Refrigerated Vacuum Centrifugal Concentrator for Low-Temperature Concentration Instrumentation

Product Description

Product Description

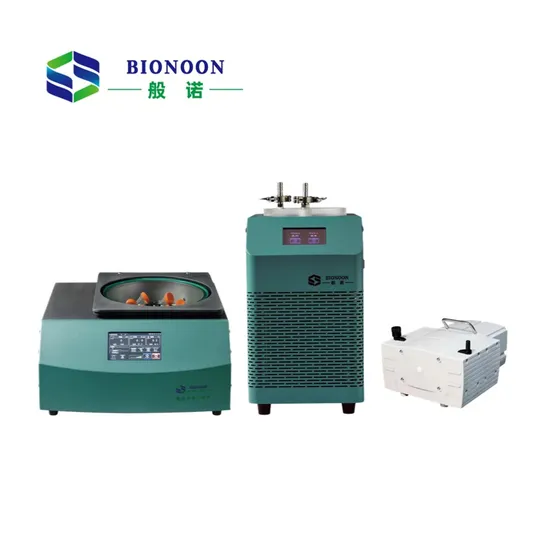

BIONOON VAC-RP1 Vacuum Freezing Centrifugal Concentrator, specially developed for heat-sensitive sample concentration, can meet the needs of ultra-low temperature concentration of heat-sensitive samples such as RNA/DNA, protein, etc., and also meet the needs of ambient concentration, with a wide range of temperature control, the chamber temperature can be supported as low as -10 ºC ~ 100 ºC.In order to serve customers in a comprehensive way, Bionoon VAC-RP1 model adopts a combination method, in addition to the main unit of vacuum freezing and centrifugal concentrator, it is also equipped with a 3L cold trap and a vacuum pump, providing a one-time solution. Different types of rotors and EP tubes, glass test tubes, various centrifuge tubes, chromatography vials, centrifuge vials or 96-well plates can be selected according to the sample volume.Product Features
1. Refrigeration model, support for low-temperature concentration, concentrator chamber temperature -10 ~ 100 ºC, 0.1 ºC increment, effective protection of heat-sensitive biological samples.
2. modular design, centrifugal chamber/vacuum chamber, vacuum pump, cold trap are independent body, can be freely assembled.
3. 7-inch touch screen display: equipment running status, programme group number, set and actual speed, set and actual temperature, set time and running time.
4. One-key start function, the whole process in one go, high degree of automation.
5. Built-in vacuum delay function, vacuuming after the rotational speed reaches the preset value, effective protection of samples, anti-splash.
6. Maintenance-free induction motor, electromagnetic drive centrifugal system, low noise, maintenance-free.
7. Quick-insertion rotor design, can quickly replace different rotors, rotor one-piece moulding without welding point.
8. Anti-chemical corrosion centrifugal chamber is made of aluminium alloy, R angle arc design, no dead angle, easy to clean.
9. Built-in 32 groups of different procedures, according to different samples, any call. Sample chamber five temperature control design, effective protection of sample safety.
10. Adopting electronic pressure sensor, more accurate value display, automatic vacuum release, easy and safe operation, with automatic switch function.
11. Highly transparent tempered glass cover, easy to observe the evaporation.
12. Compatible rotor capacity: 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2*96-well plate.
13. Stroboscope: optional, able to realise the observation of sample concentration without stopping the machine.
14. Cold trap: small volume, vertical structure, overall structure size: 260 (W) x 500 (D) x 480 (H) mm.
15. The cold trap adopts PLC control, 4.3-inch touch screen display, displaying the cold trap temperature, setup time, total running time, defrosting time, and one-key start.
16. 304 stainless steel cold trap tank body is formed in one piece, the coil in the tank, the outer ring of the coil to the inside wall of the tank around the space left 20-30mm, easy for users to clean up the cleaning.
17. The cold trap has a key frost function, can be arbitrarily modified defrost time.
18. The cold trap has a liquid discharge port, liquid discharge is convenient.
19. Anti-chemical corrosion vacuum pump pumping speed: 120L/min.
20. The manufacturer has ISO9001, CE, AAA grade credit enterprise and other certification qualifications.
Our Advantages

We are a comprehensive enterprise specialising in the research, development, production, sales and service of vacuum centrifugal concentration, vacuum freeze-drying, grinding and ultrasonic crushing laboratory instruments and life science instruments and have a professional factory.
⊙High-throughput ⊙Low-temperature concentration
⊙Less loss ⊙Safe and simpleScope of Application
⊙Oligomers and peptides

⊙Synthesis and separation of organic substrates
⊙RNA/DNA research
⊙Clinical diagnostics
⊙ADMET (Drug Metabolism Research)
⊙Protein Crystallography
⊙Pharmaceutical analysis, medicinal chemistry
⊙General laboratory enrichment

Other categories for your choice. Please click it.
High-throughput tissue grinder	Vacuum freeze dryer	Vacuum centrifugal concentrator
Lab mixer instrument	PCR instruments	Ultrasonic cleaner

Company Profile
Packaging & Shipping
Certifications
FAQ
We are pleased to offer you our high-quality products with exceptional service. The following are some questions for reference.

Q: What's the MOQ?

A: For conventional products, we can accept orders as small as 1 set. In additionto, the MOQ is 10 sets for each model for customized products,.

Q: Can you provide customized service?

A: Yes, we offer both OEM and ODM services. Our professional team can design the right items based on your specific requirements for free.

Q: How long is the lead time?

A: For conventional products, the lead time is usually within one week after order confirmation. However, the lead time for customized orders may vary depending on the complexity of the request.

Q: How can I order?

A: To place an order, simply click "Contact Supplier" on this page and send us your order requirements directly.

Q: What's the transportation method?

A: We offer multiple transportation options, including air, ocean, railway, and express. The choice depends on the volume of goods you order.

Q: What's the warranty period?

A: We provide a 12-month warranty period after delivery for non-man-made damage. Additionally, we offer free lifelong maintenance for your peace of mind.

Thanks for considering our products. If you have any further questions or need assistance, please contact us at any time.

---
