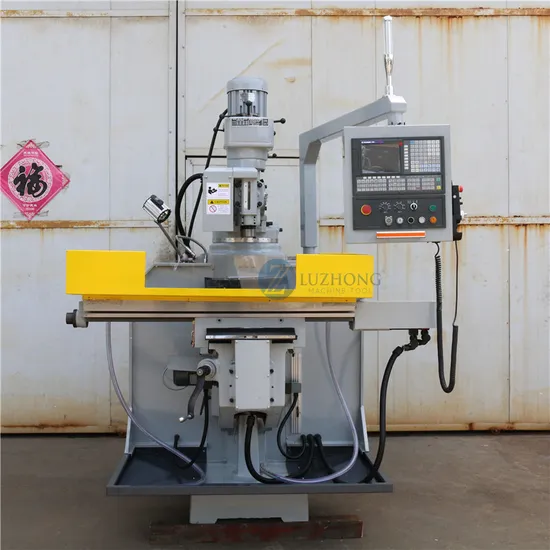

XK6325 High precision Knee Type Automatic CNC Milling Machine

Product Description

XK6325 High precision Knee Type Automatic CNC Milling Machine
Product Description
Product Parameters
Product main technical parameters:

Specifications	unit	XK6325
Table size	mm	254x1270 / 254x1370
Longitudinal travel	mm	850 / 950
Transverse travel	mm	420 / 400
Vertical travel	mm	420
T slot no. and size	mm	3x16
Ram travel	mm	470
Distance from spindle nose to table surface	mm	0-405
Spindle taper		standard: R8
		Optionl:ISO30/ISO40
Spindle travel	mm	127
Spindle speed	rpm	standard: (50HZ) 65-4500
		optional: (variable)65-4500
Auto quill feed	mm/rev	0.04/0.08/0.15
Spindle motor	kw	2.25
Head swivel		90°
Head tilting		45°
Weight	kg	1550

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
