Used Auto Vacuum Loader for Plastic Pellet Hopper Efficient Pump and Motor Core Components Conveying Solution

Product Description

Automatic batching system:
System structure: Weighing, mixing and conveying system consists of: material conveying, storage bin, weighing and metering,mixing and homogenization, control system, steel structure platform, etc.; can be widely used: plastic modification, powder Processing, building materials and pharmaceutical industries. Introduction of automatic batching system It is a comprehensive automation system integrating weighing, feeding control, mixing and homogenization, material conveying and other processes through microcomputer control and data management. For the design of an automation system for production control, it must achieve stable and reliable operation, simple and practical operation, and superior cost performance. The system consists of six major parts 1.Control part: the upper computer adopts industrial control microcomputer, PLC communication module and digital input and output module, and manual/automatic control switch, manual control button and indicator light are all installed in the integrated control cabinet for convenient operation;
2.Software part: tailored according to the basic requirements of the batching system and the actual needs of the user; 3.Weighing part: using high-precision weighing module, combined with weighing control instrument combination; 4.Feeding part: adopting pneumatic valve control and screw frequency conversion to control the injection and discharge;
5.Mixing part: configure relevant mixing equipment according to material mixing and customer requirements; Conveying
part: feeding by screw feeding or pneumatic method to the specified position

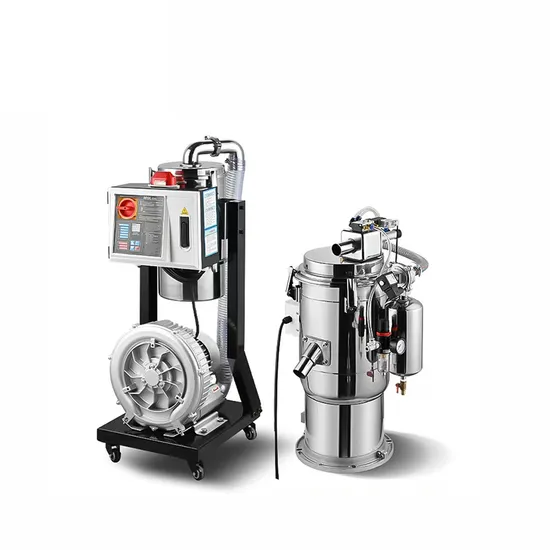

Vacuum feeder is a vacuum feeding machine by using pneumatic vacuum pump as vacuum source. With this vacuum feeder materials could be fed directly from container into mixer, reactor, hopper, sheet press, packing machine, vibrating griddle, pellet trimming machine, hydro-state pelleter, dry-state pelleter and disintegrator. To use this feeder could lighten worker's labor intensity, put an end to powder pollution and ensure that the production process meets GMP requirements.
Vacuum feeding machine is a device used for automatic feeding. Its main function is to transfer raw materials from containers to production lines or processing equipment in a dust-free and efficient manner. By utilizing vacuum technology, a dust-free and efficient material loading process has been achieved, meeting the needs of automated production and widely used in various industries such as electronic manufacturing, food processing, and pharmaceutical manufacturing.
The vacuum feeding machine consists of vacuum pump(oil-free or water-free, ), vacuum hopper, filter(polyester coated, pe, 316L stainless steel, titanium),compressed air backflushing device, pneumatic feeding door device, automatic material level control device, stainless steel suction nozzle, conveying hose. The whole equipment is well designed and manufactured.

---
