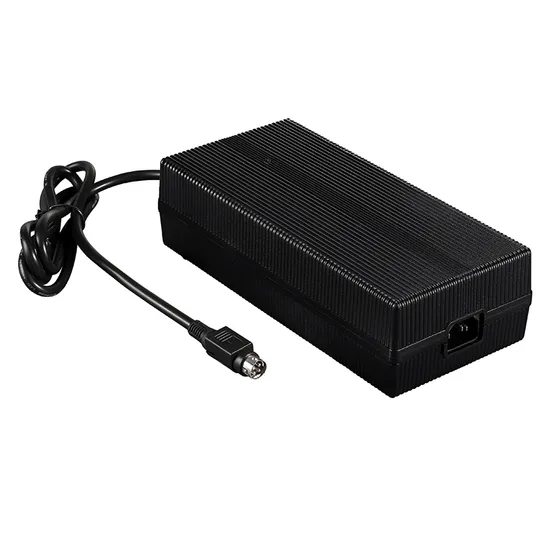

Custom 12V 24V 36V 48V 60V 72V Power Supply AC Adapter DC Switching Power Supply

Product Description

Product Description If you can not find a product that meets the your requirements, please send an inquiry and tell us
the specifications. We will provide you with detailed information and quotation.

Custom 12V 24V 36V 48V 60V 72V Power Supply AC Adapter DC Switching Power Supply

Features

·Universal AC input / Full range

·Plastic or metal case optional

·Cooling by free air convection

·MTBF:30000 hours

·Provide 3 years warranty

·Install fuses on both ends of the Input and Output for double safety

·Protections:Short circuit / Over load / Over voltage / Over temperature

·Meet CEC,DoE Level VI,Energy star,ErP stage 2,CoC Tier 2,NRCan & GEMS

·Certification:UL,ETL,CUL,GS,CE,BS,SAA,KC,PSE,CB,FCC,EMC,RoHS,REACH

MODEL NO.

FY5401000 (Custom)

FY5402000 (Custom)

FY5403000 (Custom)

FY5404000 (Custom)

FY5405000 (Custom)

FY5406000 (Custom)

FY5407000 (Custom)

FY5409000 (Custom)

OUTPUT VOLTAGE

63V

63V

63V

63V

63V

63V

63V

63V

OUTPUT CURRENT

1A

2A

3.5A

4A

5A

7A

9A

10A

OUTPUT POWER

63W

126W

220.5W

252W

315W

441W

567W

630W

PFC (MIN.)

0.6

0.9

0.9

0.9

0.9

0.9

0.9

0.9

RIPPLE & NOISE (max.)

440mVp-p

440mVp-p

440mVp-p

440mVp-p

440mVp-p

440mVp-p

440mVp-p

440mVp-p

INPUT

INPUT VOLTAGE RANGE

100 ~ 240VAC

FREQUENCY RANGE

50 / 60Hz

INPUT POWER

NO LOAD: 0.5W MAX AT INPUT 100-240VAC 50/60Hz . LOADING : 450W MAX , AT RATED OUTPUT .

TEMPERATURE RISING

CASE 65 ºC MAX .ºC FOR RATED OUTPUT

EFFICIENCY (MIN)

88%

DIELECTRIC WITHSTAND TEST

5mA 3000VAC FOR 60 SECOND BETWEEN INPUT AND OUTPUT INPUT AND CASE, AT AN ALTERNATIVE POTENIALS 5% HIGHER MAY BE APPLIED FOR 1 SECOND

PROTECTION

OVER LOAD

THE PRODCT INCLUDES CURRENT FUSE TYPE 250V 3A LOCATED WITHIN INPUT CIRCUIT

SHORT CIRCUIT:

CAPABLE OF WITHSTANDING CONTINUOUS SHORT CIRCUIT AND RECOVER AUTOMATICALLY

ENVIRONMENT

WORKING TEMP RANGE

THE OPERATIN TEMPERATURE OF THE PRODUCT SHALL BY FROM -29 ºC TO + 45 ºC

STORAGE TEMPERATURE

THE STORAGE TEMPERATURE OF THE PRODUCT SHALL BY FROM -40 ºC TO + 75 ºC

RESISTANCE TO HEAT

WHEN TESTED WITHIN 10 MINUTES AFTER PRODUCT HAS BEEN PLACED IN A TEST CHAMBER MAINTAINED AT105 ±3ºC FOR 16 HOURS , THE PRODUCT SHALL COMPLYVAC WITH THE REQUIREMENTS OF 4.7 , DIELECTRIC WITHSTAND TEST , SHALL HAVE INSULATION RESISTANCS NOT LESS THAN STATED BELOW AS MEASURED AT 500VDC 10 MEGOHMS MINIMUM BETWEEN THE INPUT AND THE OUTPUT, INPUT AND CASE TOGETHER , 10 MEGOHMS MINIMUM

RESISTANCE TO MOISTURE

THE PRODUCT SHALL BY PLACED IN A TEST CHAMBER MAINTAINED AT 40 ± 2 ºC AT 90% ~ 95% RELATIVE HUMIDITY FOR 6 HOURS . THEN , WHEN TESTING 10 MINUTES SAFTER THE PRODUCT IS TAKEN OUT FROM THE TEST CHAMBER AND WIPED DRY , THE PRODUCT SHALL COMPLY WITH THE REQUIREMENTS OF 4.7 DIELECTRIC WITHSTAND TEST , AND SHALL HAVE INSULATION RESISTANCE NOT LESS THAN STATED BELOW AS MEASURED AT 500VDC 10 MEGOHMS MINIMUM BETWEEN THE PRIMARY AND THE SECONDARY TOGETHER;10 MEGOHMS MINIMUM BETWEEN A SECONDRY THER SECONDRY AND TOGETHER.

SAFETY & EMC

SAFETY STANDARDS

UL60950 EN60335

EMI

CISPR22 CLASS

INSULATION

B

OTHERS

MTBF

THEVDESIGN AND CONSTRUCTION OF THIS PRODUCT EXHIBIT A MINIMUM MEAN TIME BETWEEN FAILURE OF 30000 HOURS FULL RATED LOAD OPERATION AT 25 ºC

CONNECTOR

PLUG

5521, 5525, RCA, XLR, XT60, M16, C14.

CABLE

UL2464 18# 1M length

Q1: What is the warranty of your products?
A: We offer 3 years guarantee for our Battery Chargers. Power Adapters and LED Power
Supplies, at the same time if the products was damaged undesigned , we are willing to replace
unconditionally.
Q2: What kind of battery charger you can offer ?
A: We can manufacture Lithium Battery Charger, Lead-acid Battery charger, LifePo4 Battery
Charger and NilMH Battery Chargers within a range of 30w-1000w.
Q3. Do you have some new product coming? A: We have 30 years experience in production of switch power supply company, at present ,
the main goal is to high-power switching power supply design and production, 800W battery
chargers and adapters have been applied for certification, can put into production soon.
Q4: Will each of your product tested before shipment?
A: Yes, each of our Battery Chargers, Power Adapters and LED Power Supplies will be strictly
tested before shipping. The last four processes of testing is Open Frame Performance Testing
--- Plastic Housing Integrated --- 4-hour Aging Testing --- Drop Testing---- Final Performance
Testing --- Packaging.
Q5: What certifications you have ?
A: Our company have been certified by ISO 9001:2015.ISO 14000:2015,QC 080000:2015;
Our Battery Chargers ,Power Adapters and LED Power Supplies are passed UL.FCC.CUL.
CE,RoHs,CB,TUV/GS, SAA,RCM,PSE,KC,CCC.
Q6: What's the lead time?
A: Sample :3-5 days. Mass production: 15-20 days, depends on the order quantity.
Q7: How do you ship the goods and how long does it take?
A:We usually ship by DHL,UPS,FEDEX,TNT etc. It usually takes 4-5 days to arrive. By air,
by sea are also acceptable.
Q8: Could you customize electric bike battery charger for us ?
A: Yes, we support both OEM & ODM.

---
