Detergent Powder Processing Industrial Double Ribbon Mixer

Product Description

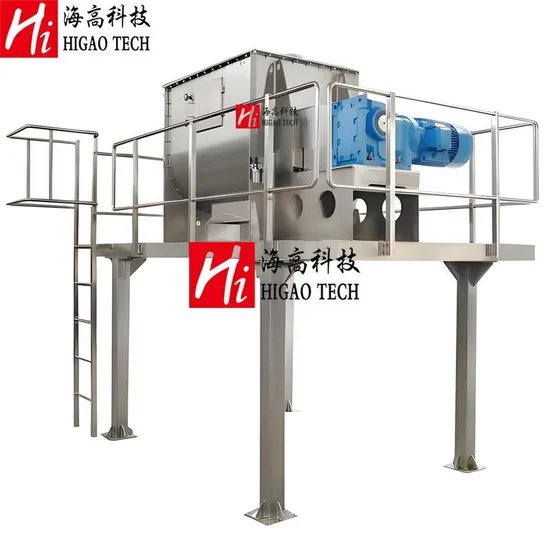

Product Description Horizontal ribbon mixer machine has a single blending shaft with double helical ribbons. ribbon mixer machine is widely used in mixing dry powder, granules, particles, pellets, low viscous paste materials with spraying liquid or oil during the mixing process.

Product Parameters

(RM Series) Ribbon Paddle Mixer of HIGAO TECH
Model	Total volume	Loading volume	Capacity	Loading coefficient	Mixing time	Motor/speed	Dimension(L×W×H)	Weight
RM-100	100L	50L	50kg	40~60%	0~999Min	2.2kw/58rpm	1190×740×790mm	380kg
RM-200	200L	100L	100kg	40~60%	0~999Min	3kw/53rpm	2030×630×980mm	450kg
RM-300	300L	180L	200kg	40~60%	0~999Min	4kw/41rpm	2280×680×880mm	550kg
RM-500	500L	300L	300kg	40~60%	0~999Min	5.5kw/41rpm	2670×780×1240mm	900kg
RM-1M3	1M3	0.6M3	600kg	40~60%	0~999Min	11kw/33rpm	3140×980×1400mm	1600kg
RM-2M3	2M3	1.2M3	1200kg	40~60%	0~999Min	15kw/33rpm	3860×1200×1650mm	2700kg
RM-3M3	3M3	1.8M3	1800kg	40~60%	0~999Min	18.5kw/33rpm	4460×1300×1700mm	3600kg
RM-4M3	4M3	2.4M3	2500kg	40~60%	0~999Min	22kw/27rpm	4950×1400×2000mm	4200kg
RM-5M3	5M3	3M3	3000kg	40~60%	0~999Min	30kw/27rpm	5280×1550×2100mm	5100kg
RM-6M3	6M3	3.6M3	3600kg	40~60%	0~999Min	37kw/27rpm	5530×1560×2200mm	5600kg
RM-8M3	8M3	4.8M3	4800kg	40~60%	0~999Min	45kw/22rpm	5100×1720×2500mm	6500kg
RM-10M3	10M3	6M3	6000kg	40~60%	0~999Min	45kw/22rpm	5610×1750×2650mm	7800kg
RM-15M3	15M3	9M3	9000kg	40~60%	0~999Min	55kw/14rpm	5820×2000×2900mm	11000kg
RM-20M3	20M3	12M3	12000kg	40~60%	0~999Min	75kw/14rpm	6060×2350×3160mm	13000kg
RM-30M3	30M3	18M3	15000kg	40~60%	0~999Min	110kw/12rpm	6200×2500×3350mm	16000kg

Detailed Photos Working Principle and Features:
Ribbon Mixer is used to mix powders for lab scale test and industrial production.
It has excellent homogeneity for powder mixing.
The mixing tank can be designed into U shape or Drum shape.
High speed choppers can be installed for high shear dispersion.
More options can be chosen according to different demand.
Such as heating jacket, cooling jacket, vacuum system, explosion proof standard, stainless steel material, special coating. Related Products Click on this link to view more products.
Application
Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
