High-Speed CNC Drilling Machine for H Beam Production

Product Description

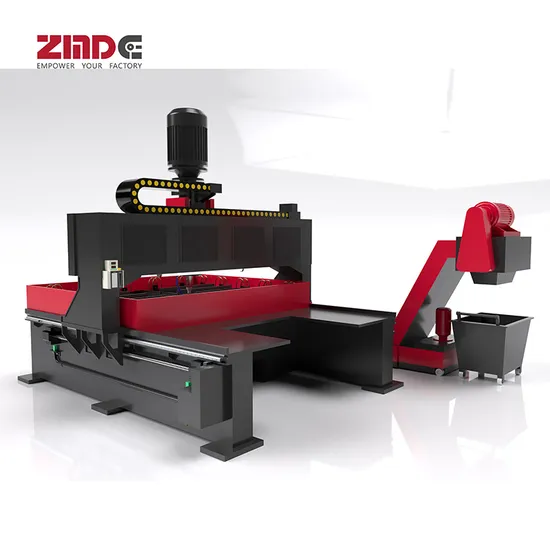

ZMDE High Speed Automated Plate Drilling System CNC H Beam Production Line CNC Drilling Machine

>Your Cost-Effective Equipment Solution <
1. Built with robust materials and featuring industry-renowned components (ball screw, linear guide vice, hydraulic parts, electrical parts, servo motor, frequency converter), this machine has a remarkably low failure rate, minimizing maintenance costs.
2. The CRT display facilitates automatic chip removal, significantly reducing the cost and time associated with manual cleaning.
3. Experience high precision and exceptional workpiece qualification rates, all while lowering consumable costs with our cutting-edge equipment.
>Simplified Operation, Amplified Productivity <
1. The intuitive human-machine interface clearly displays processes and generates automatic machining programs for user-friendly operation.
2. CNC and PLC control systems ensure pinpoint accuracy in positioning.
3. Hydraulic clamps secure workpieces efficiently, allowing operators to control the system effortlessly via foot switch.
4. Equipped with 12 rapid hydraulic clamps arranged around the table, enabling simultaneous clamping of four workpiece groups.
5. Optimize production cycles by clamping smaller workpieces at the table corners, significantly reducing preparation time and boosting efficiency.
6. Enhance your production cycle by clamping small workpieces at the table corners, drastically improving efficiency and preparation times.
> Unmatched Quality, Versatile Applications <
1. Key components like the gantry, column, and table are crafted from solid materials, contributing to the machine's substantial 6300kg weight.
2. Designed for a broad range of industries, this equipment is essential for plate processing operations.
3. Accommodates a vast array of drilling diameters ranging from 12 to 50mm, offering extensive versatility.
> Ideal for Diverse Production Scenarios <
1. Perfect for continuous, multi-batch production of single flat type workpieces.
2. Efficiently handles small batches of various workpieces, accommodating different shapes like rectangular, round flange, and polygonal plates, with the capability to process two or four different specifications simultaneously.
3. Supports stack production of multiple thin sheets, capable of drilling holes up to a maximum stack height of 100mm.
4. Automate start and end points with upper computer software, enabling drilling of through holes, blind holes, step holes, and hole end chamfering.
> Pioneering Production Process Automation <
1. High automation with line board integration and automatic positioning based on drilling programs.
2. Adjusts feeding volume optimally according to different hole diameters for maximum efficiency.
3. Facilitates automatic, continuous processing of large hole diameters, achieving one-time processing and molding.
4. Features an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
