US$527.00-1,527.00
|
1 Piece
(MOQ)
|
Basic Info.
Power Supply Type
AC Power
Power Supply Voltage
220V
Product Name
Tyd M16-M22/M24/M27/M30 Torsional Shear Electric W
Applicable Bolt Diameter
M16-M22/M24/M27/M30
Max Current
4A/5A/5.5A/6A
Application
Bolting Solution
Transport Package
Blow Mold Case
Product Description
High-Power Precision Adjustable 2000N.m Digital Torsion Electric Shear Wrench for Bolt Cutting
Products Description

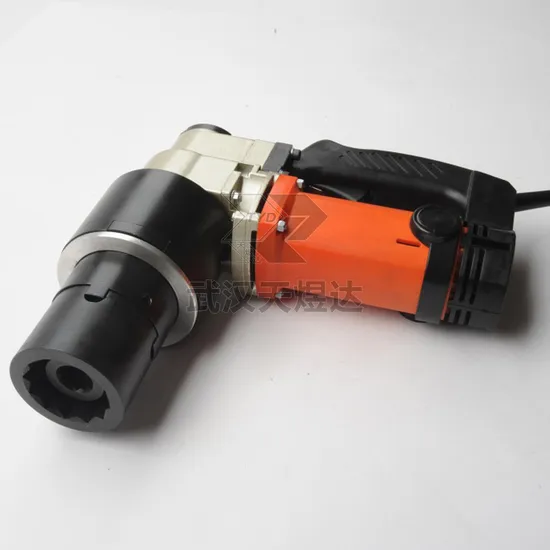

P1B-TYD series torsion shear electric wrench is an indispensable tool for torsion shear torx head bolt tightening operations. It helps you to install and remove bolts and nuts, and at the same time can more accurately control the tightening torque. This machine only needs to replace the inner and outer sleeves to be suitable for the construction of M16-M30 high-strength torsion shear bolts produced by various manufacturers. This machine adopts special steel and special heat treatment process, which is durable and has no rebound force during operation. Product Features
How to operate: (1) Squeeze the trigger switch to start. During the tightening process, the rotational speed gradually decreases, and when the specified torque is reached, the tail of the bolt is cut off in the trimming groove or the wrench automatically stops turning.
(2) Directly remove the wrench from the nut.
(3) If the bolt tail is clipped, operate the eject lever to discard the bolt tip. Product Parameters
| Model | P1B-TYD-22J | P1B-TYD-24J | P1B-TYD-27J | P1B-TYD-30J |
| Max torque | 1000N.m | 1500N.m | 1700N.m | 2500N.m |
| Rated voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Max current | 4A | 5A | 5.5A | 6A |
| Max power | 1200W | 1300W | 1300W | 1300W |
| Rotating speed | 16+r/min | 13+r/min | 5+r/min | 5+r/min |
| Weight | 5.6kg | 6.42kg | 9.38kg | 9.38kg |
| Applicable bolt diameter | M16-M22 | M16-M24 | M16-M27 | M16-M30 |
| φd | 56 | 63 | 76 | 76 |
| φD | 72 | 83 | 105 | 105 |
| L | 245 | 260 | 307 | 307 |
| L1 | 60 | 65 | 86 | 86 |
| L2 | 100 | 110 | 160 | 160 |
| H | 272 | 277 | 293 | 293 |
| Standard socket | M20 M22 | M22 M24 | M24 M27 | M27 M30 |
| Optional socket | M16 | M16 M20 | M16.M20.M22 | M16.20.22.24 |
