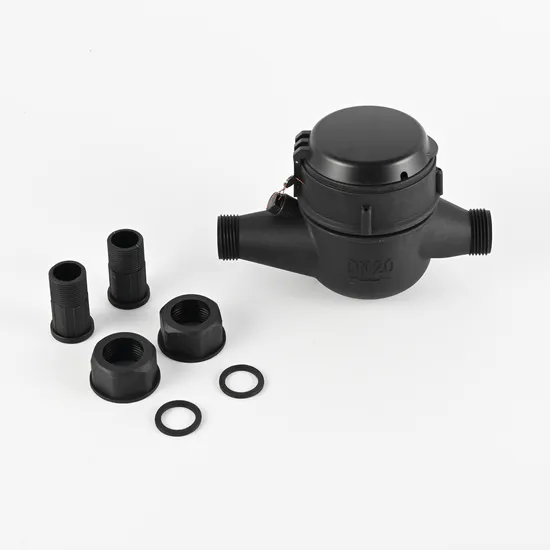

Yuxing Water Meter 20mm R80 Multi Jet Dry Type Cold/Hot Plastic Body Water Meter Brass Body Water Meter Flow Meter

Product Description

Product Description Application:
--Measuring the total volume of cold potable water passing through the pipeline.

Feature:
--Dry type, magnetic drive, easy and long term clear reading, frost resistance, long working life ect;
-- The counter can be rotated 360° in the plane;
--High quality materials corrosion resistance
--Pole ring magnet polymer coating as protection against deposits.
--Plastic connector nut
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse
-- Technical data conform to international standard ISO4064 Class B Class C R80,R160.

Working condition:
Water temperature: 0.1°C~50°C for cold water meter.
Water pressure : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)
Maximum permissible error:
(1) n the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;
MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standard

Type	Size (mm)	Class	Qs Overload Flow	Qp Permanent Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading		Maximum Reading
			m3/h		L/h		m3
LXSG-15S	15	B	3	1.5	120	30	0.0001	99,999

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs
incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB,CIF all acceptable.

---
