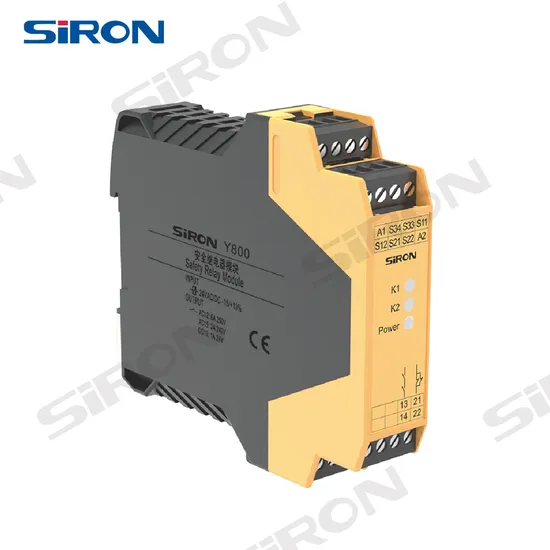

Siron Y800 Relays for E-Stop and Safety Door Safety Relay

Product Description

Features * Safety relays for monitoring emergency stop switches and safety door switches;
* Internal circuit redundancy design, even if a single component fails, the safety function can still be maintained;
* With built-in self-test function, each start and stop cycle automatically detects the normal action and release of the internal relay;
* Contact non-delay, up to 4 safety contact outputs, manual or automatic reset;
* Meets the requirements of EN 60947-5-1 and EN 60204-1, and the safety performance level can be up to the PLe level of ISO 13849-1;
* LED lights indicate internal relay working status and power status.
Specifications

Model	Y800-X	Y801-X	Y802-X	Y803-X
Output form	One set of instantaneous safety normally open and one set of alarm contacts normally closed	Two sets of instantaneous safety normally open	Three groups of instantaneous safety normally open and one group of alarm contacts normally closed	Four groups of instantaneous safety normally open

Output	Maximum rated output power	144W( 24VDC,τ=0ms) 48W(24VDC,τ=40ms) 1500VA(250VAC,cosφ=1) 250VA(250VAC,cosφ=0.4)
	Operating time (under rated voltage)	≤100ms
	Release time (under rated voltage)	≤45ms
	Recovery Time	≤0.5s
	Minimum switching voltage	15VDC/VAC
	Minimum on-off capacity	0.4W
	On-off capacity	6A 24VDC/5A 230VAC
Input	Rated operating voltage	24VAC/VDC
	Permissible error of operating voltage	-15%~10%
	Frequency range	50Hz~60Hz
	Consumed power	2 set:≤3.5VA/1.7W;4set:≤5.1VA/2.4W
Environment and Install	Operating temperature	-20~55ºC
	Storage temperature	-40~85ºC
	Wire stripping length	DIN35mm guide rail installation (Installed in the control cabinet with at least IP54 protection level)
	Screw torque	IEC 60947-5-1,IEC 62061; ISO/EN 13849-1,IEC 61508
	Protection grade	4k V
	The durability of electricity	10Hz ~ 55Hz 1.5mm double amplitude
	Mechanical durability	250VAC
	Weight	2
	External protective fuse	III

Product Description
Company Profile
FAQ 1.What type of company are you?
We are a manufacturer,we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future,
welcome to discuss the deep details with us.

---
