Vicimeter VC4060B+ New Energy Car Checking Insulation Inductance Multimeter

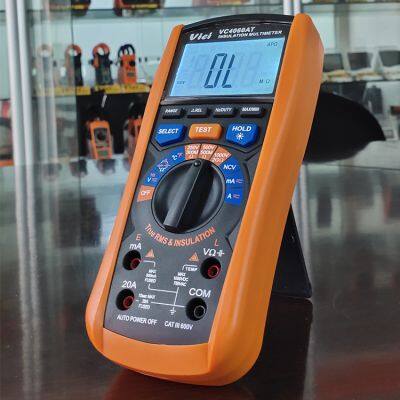

VC4060AT Insulation Multimeter
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance, full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; backlight display;
6. Insulation Resistance Test, True RMS, NCV, temperature, Frequency, duty-cycle, and data hold function.
Technical parameters:
Basic function
| Range
| Accuracy
|
DCV
| 600mV/6V/60V/600V/1000V
| ±(0.5%+5)
|
ACV
| 6V/60V/600V/750V
| ±(0.8%+10)
|
DCA
| 6mA/60mA/600mA/6A/20A
| ±(1.0%+5)
|
ACA
| 6mA/60mA/600mA/6A/20A
| ±(1.5%+10)
|
Resistance
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
| ±(0.8%+2)
|
Capacitance
| 60nF/600nF/6uF/60uF/600uF/6mF/60mF
| ±(2.5%+5)
|
Temperature
| -40~1000℃ | -40~1832℉
| ±(1.0%+5)
|
Frequency
| 10Hz/100Hz/1kHz/10kHz/50kHz
| ±(1.0%+3)
|
Insulation
| 300MΩ, 500MΩ, 2000MΩ
| ±(4.0%+2)
|
Special function
Max. display
| 6000
|
Safety level
| CAT. III 600V
|
True RMS, NCV
| √
|
Function Protect
| √
|
Diode test
| √
|
Continuity test
| Warning sound when less than 50Ω
|
Duty cycle measuring
| √
|
Data hold, Backlight display
| √
|
Max-Min
| MAX., MIN. value and difference value between MAX and MIN
|
Auto power off
| Approx.15minutes
|
Low battery indication
| Approx. less than 7.6V
|
Input impendence
| 10MΩ
|
Sampling rate
| 3times/s
|
AC frequency response
| 40Hz-2kHz
|
Operation way
| Manual or auto range
|
LCD size
| 65×40mm
|
Power
| 6x1.5V AA battery
|
Power dissipation
| Quiescent current approx. 6mA
|
General Info:
Color
| Orange holster and Grey device
|
Weight
| 480g (including battery)
|
Meter size
| 200mm×92mm×50mm
|
Standard accessory
| TL98A test leads, TL1358 alligator clip test leads,
TP01 temperature probes, battery, manual, handbag, color box
|
Quantity per carton
| 20pcs
|
Carton size
| 46.5*31.5*29.0cm
|
GW per carton
| 17kg
|
>>
