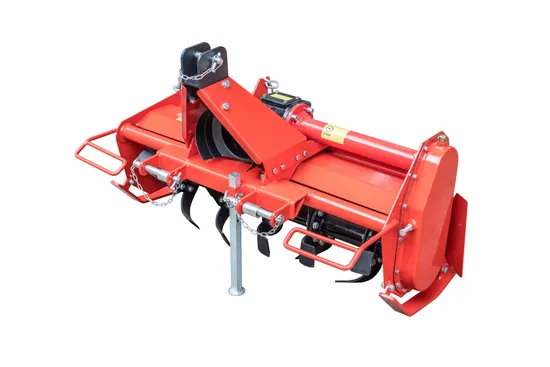

Agriculture Mini Tractor Implement Rotary Tiller

Product Description

Product Description

sized right for subcompact tractors and are designed to till soil for seedbed preparation. They are ideal for homeowner landscaping, small nurseries, gardens, small hobby farms, or medium-duty residential use.
Specification:
1. 3 point linkage
2. Casting iron gearbox
3. Tractor power required: 15-25hp / 20-30hp
Product Attribute:
1. Transmission: chain driven.
2. Gearbox is made of casting iron. Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure is firm and stable.
Product Parameters

RT Series

Model	Size(mm)	Working width(cm)	PTO speed	G.W (kg)	No.blades	Tilling depth	Packing size (mm)	Power(HP)
RT-85	950×550×560	85	540r/min	110	16	8-12cm	1060×650×660	15-25
RT-95	1050×550×560	95	540r/min	115	16	8-12cm	1160×650×660	15-25
RT-105	1150×550×560	105	540r/min	125	20	8-12cm	1260×650×660	15-25
RT-115	1250×550×560	115	540r/min	135	24	8-12cm	1360×650×660	20-30
RT-125	1350×550×560	125	540r/min	145	28	8-12cm	1460×650×660	20-30
RT-135	1450×550×560	135	540r/min	155	32	8-12cm	1560×650×660	20-30

FD Series

Model	Size(mm)	Working width(cm)	PTO speed	Kilos	No.blades	Tilling depth	Packing (mm)	Power(HP)
FD-85	950×550×560	85	540r/min	115	16	8-12cm	1060×650×660	15-25
FD-95	1050×550×560	95	540r/min	120	16	8-12cm	1160×650×660	15-25
FD-105	1150×550×560	105	540r/min	130	20	8-12cm	1260×650×660	15-25
FD-115	1250×550×560	115	540r/min	140	24	8-12cm	1360×650×660	20-30
FD-125	1350×550×560	125	540r/min	150	28	8-12cm	1460×650×660	20-30
FD-135	1450×550×560	135	540r/min	160	32	8-12cm	1560×650×660	20-30

Video showing:
https://cnlefa.en.made-in-china.com
Light Duty Rotary Tiller(RT): https://cnlefa.en.made-in-china.com
Company Profile

1. We are the first one to produce tractor flail mower in China.
We have mature experience in this field.
2. We have engineer with many years experience in farm machine design.
3. We provide good after-sales service.
4. We will reply your email in 12 hours.
5. We provide professional shipment service to save delivery charges for customers.
6. Short lead time: 25 days to 30 days for one 20ft container.
7. We have got good credit grade from the government.
8. CE certificate provided.
9. OEM and ODM provided.
Welcome to send inquiry to us.
Welcome to visit our factory.

---
