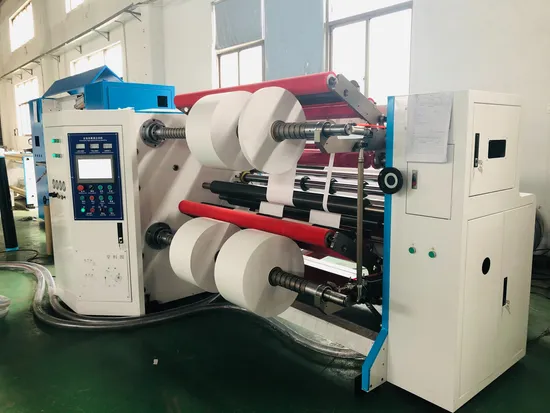

Sticky Film/Paper/Label Roll to Roll Slitting Rewinding Machine

Product Description

Sticky Film/Paper/Label roll to roll Slitting Rewinding Machine
Application
The Machine is suitable for slitting of various ultra-large type coiled material, such as plastic film (PVC,OPP,PET, CPP), paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, non-woven fabrics, and other coiled materials slitting and rewinding.
Technical data

Model	JT-SLT-1300F
Max. Unwinding Width	1300mm
Max. Unwinding Diameter	1000mm
Max. Rewinding Diameter	800mm
Acceptable Thickness Range	50-800gsm
Max. Machine Speed	300m/min
Unwinding/Rewinding Shaft	3''(76mm) Air expanding shaft
Rated Power	18KW
Machine Weight	2500kg
Overall Dimensions(L*W*H)	3600mm* 2400mm *2000mm

Function and section

Components
Unwinding section	-3"(76mm)air expanding rewinding shaft - Hydraulic automatic lift-up loading system -Ultrasonic correction to get the very high precision -Electromagnetic Brake from Taiwan -Fully automatic tension controller -Balance Roller which used to adjust the Material Tightness
Slitting Section	-Choices of Razor cutter or Disc cutter -Disc Cutter Assembly adopt the cam self-locking -Cutter with adjustable and moveable blade base. -Meter counter -NIP Roller which controller by main motor.
Rewinding Section	-3"air expanding rewinding shafts -Center Rewinding technology - Pressure Arm -Electromagnetic Clutch from Taiwan
Controlling Section	-Inovance PLC & HMI -All the parameters are displayed on the monitor -Low voltage electrical appliances all from Schneider
Trimmed Waste Edge	-Edge Waste Blower with Expulsion Tube
Optional	-6'' and 12" Unwinding shafts -Shaftless type Unwinding Stand. -Friction Differential Shaft for rewinding. -Ultrasonic type Edge Position Control (EPC) -Safety guard for the slitting device. -Emergency Switches on the 4 corner of machine.

FAQ
1. Our payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
2. Our lead time?
Usually 30-60 days, depend on machine design and setting.
3. Our service policy?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
4. Our other products?
We also offer other postpress machines for package and label printing companies, like UV coating machine, laminating machine, window patching machine, carton inkjet printing machine and digital label printing machine, thermal paper slitting machine.

---
