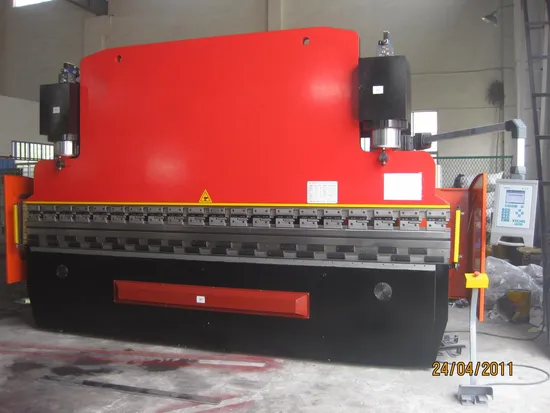

CNC Press Brake with Da52 Controller in High Accuracy

Product Description

1.Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list
Tool clamping and Press Brake Die
Holland,DELEM DA52 system
Photoelectric protection (Optional)

Order	Name		Value		Unit	Remarks
1	Nominal pressure		3000		KN
2	Bending length		4000		mm
3	Poles distance		3150		mm
4	Throat depth		250		mm
5	Slider stroke		250		mm
6	Height of the workbench		800		mm
7	Width of the workbench		100		mm
8	Slider no-load speed		110		Mm/s
9	Slider feeding speed		10		mm/s
10	Slider return speed		100		mm/s
11	Main power		18.5		KW
12	CNC		DELEM DA52
13	Axis		3		pieces
14	Pump model		PGH4-21/040PE11VU2
15	Weight of oil box		510		L
16	Precision of backguage	X axis	Precision	±0.05	mm
			Stroke	700	Mm
			Max speed	100	mm/s
			Motor power	1	KW

---
