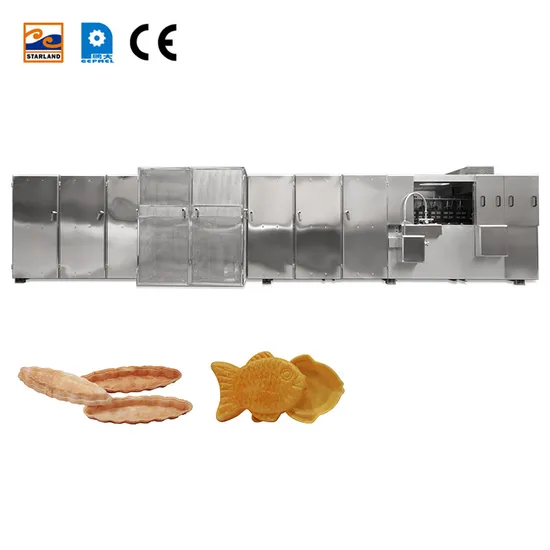

CE Stainless Steels Multifunctional Automatic Wafer Biscuit Making Machine Monaka Wafer Production Line

Product Description

CE Stainless Steels Multifunctional Automatic Wafer Biscuit Making Machine Monaka Wafer Production Line
Features of ice cream cone making machine
1.This machine is suitable for making flat sugar cones with length less than 145mm. The taper, weight, thickness and pattern spacing can be customised according to customers' requirements.
2. The machine consists of 280*240mm baking discs, the material of the baking discs is high quality ductile cast iron, each baking disc can make two cone plates.
3. The machine is driven by three-phase power supply, the back oven is heated by gas (natural gas or liquefied petroleum gas), electric ignition, and the temperature of the oven is displayed electronically. The production capacity is very strong, from slurry spraying, baking, moulding, demoulding, conveying products, stacking and counting are all automated.
Technical Specifications:
The machine is driven by three-phase power supply and the oven is heated by gas (natural gas or liquefied gas).
The production capacity is very high, from spreading batter, baking, moulding, demoulding, conveying products, stacking and counting are all carried out automatically.
Structure:
The parts of the machine are mounted on a sturdy steel structure.
All doors are double layered to ensure heat.
EQUIPMENT PERFORMANCE: The baking machine is continuous working, automatic and rotating.
The speed can be adjusted as required. The machine is driven by a motor with direct traction.
Automatic Wafer Biscuit Making Machine Specifications

Applicable Industries	Food & Beverage Factory, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Place of Origin	China
Brand Name	STARLAND
Model Number
Voltage	220V/380V
Weight	8000KG
Dimension(L*W*H)	12000L x 2400W x 1800H
Certification	CE
Warranty	1 Year
Key Selling Points	High Productivity
Number of Baking Plates:	73
Standard Cone /hour**:	7000
Place of Origin:	China
Gas consumption(kg)/ hour:	11-12
name:	Automatic Wafer Biscuit Making Machine
Material:	Stainless Steel
Main Motor Specification:	2.0hp;1.5KW

Our Services
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.


FAQ
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What's the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you
quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
♦Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either cones or machines.
We help you go from cone to solution.

After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.

---
