Good Quality Marine Steel Anchor for Sale

Product Description

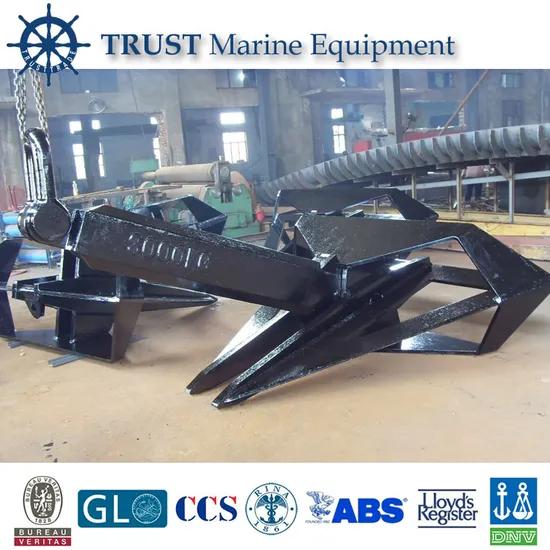

Good quality marine steel anchor for sale
Product Description
The Anchor is the popular anchor for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.

Specification:
Material: Steel Plate
Weight: 100KGS- 30000KGS
Class Certificate: ABS, LR, BV, DNV, NK, GL, CCS
Shipment: Fast Delivery
Shipping term: Incoterm 2010

Nominal Weight (kg)	Dimensions (mm)
	A	B	C	D	E	F
300	1200	960	1080	457	1380	Φ45
500	1500	1200	1350	571	1725	Φ50
1000	1875	1500	1686	714	2155	Φ62
1080	1915	1530	1686	722	2200	Φ62
2000	2363	1890	2124	900	2715	Φ74
3000	2700	2160	2430	1028	3105	Φ90
4000	2975	2380	2676	1133	3420	Φ100
5000	3250	2600	2922	1238	3735	Φ110
7000	3575	2860	3216	1360	4110	Φ117
9000	3950	3160	3555	1504	4543	Φ135
10000	4100	3280	3690	1561	4715	Φ140
12000	4490	3575	4030	1695	5320	Φ145
13500	4670	3720	4195	1765	5535	Φ150
15000	4845	3875	4355	1830	5735	Φ150
18000	5140	4080	4610	1940	6080	Φ160
20000	5330	4260	4790	2010	6310	Φ170
22500	5490	4360	4905	2060	6470	Φ180
25000	5740	4590	5106	2165	6795	Φ180
27500	5980	4785	5385	2245	7095	Φ180

Delivery and Package
Delivery: 20-60 days for anchor after payment according to quantity.
Package: marine anchor will be packed by exporting standard package or as per customer's requirement.

---
