High Efficiency Electrolyte Water Cooled Removable/ Brazed / Semi-Welded / Fully Welded / Plate Heat Exchanger, Tubular/Shell and Tube Heat Exchanger

Product Description

Product Parameters

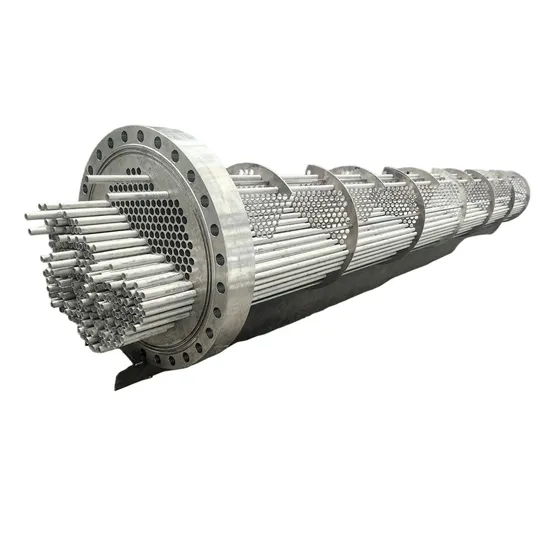

Tubular (also known as shell-and-tube, or tube-in-shell) heat exchangers are the most typical countercurrent heat exchangers and have a long history of use in industry, and they still dominate all heat exchangers today. Tubular heat exchangers consist of main components such as the shell, tube bundle, header, and end caps. The shell is usually cylindrical and contains parallel tube bundles. The tube bundles are fixed at both ends to the headers.
In tubular heat exchangers, two fluids are exchanged within the tubes. The flow path within the tubes is called the tube side, and the flow path outside the tubes is called the shell side. The tube wall is the heat transfer surface. To increase the heat transfer coefficient on the shell side, baffles are usually installed inside the shell. The baffles not only prevent short-circuiting but also increase the fluid velocity and force the fluid to flow in a zigzag pattern through the tube bundle, greatly increasing turbulence. Common types of baffles include concave and disk shapes, with the former being more widely used. The fluid passes through the tube bundle once within the tubes is called a tube pass, and passing through the shell once is called a shell pass. To increase

Technical parameter
Product name	Shell and Tube Heat Exchanger
Product model	HLGLC-1/2//3......-A
Unit heat exchanging area	1-4000m2
Maximum flowrate	1-5000m3/h
Shell material	Shell material 304,316L.2205,TAI,C275, Copper
Heat exchange tube material	Shell material 304,316L.2205,TAI,C275, Copper
Welding material	99.99Stainless Steel 304,316L.2205,TAI,C275, Copper
Thickness of Materials	0.5-12mm
Design pressure	1.0MPa-9.0MPa
Test pressure	1.5MPa 9.9MPa
Design temperature	1-500
Basic Procedures	A1-> A2 A4-> A3
Application scope	Heating Water Heater, air conditioning economizer, Heat pump evaporator, chiller condenser, etc.Chemical, pharmaceutical, HVAC, pulp mill, beverage. The installation company,

Tubular (also known as shell-and-tube, or tube-in-shell) heat exchangers are the most typical countercurrent heat exchangers and have a long history of use in industry, and they still dominate all heat exchangers today. Tubular heat exchangers consist of main components such as the shell, tube bundle, header, and end caps. The shell is usually cylindrical and contains parallel tube bundles. The tube bundles are fixed at both ends to the headers.
In tubular heat exchangers, two fluids are exchanged within the tubes. The flow path within the tubes is called the tube side, and the flow path outside the tubes is called the shell side. The tube wall is the heat transfer surface. To increase the heat transfer coefficient on the shell side, baffles are usually installed inside the shell. The baffles not only prevent short-circuiting but also increase the fluid velocity and force the fluid to flow in a zigzag pattern through the tube bundle, greatly increasing turbulence. Common types of baffles include concave and disk shapes, with the former being more widely used. The fluid passes through the tube bundle once within the tubes is called a tube pass, and passing through the shell once is called a shell pass. To increase
Detailed Photos
Application scenarios of plate heat exchangers:
1. Refrigeration: used as a condenser and evaporator.
2. HVAC: Intermediate heat exchangers used in conjunction with boilers, high-rise building intermediate heat exchangers, etc.
3. Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin synthesis cooling, etc.
4. Metallurgical industry: Heating or cooling of aluminate mother liquor, cooling of steelmaking process, etc.
5. Mechanical industry: cooling with various quenching fluids, cooling with lubricating oil for reducers, etc.
6. Power industry: High voltage transformer oil cooling, generator bearing oil cooling, etc.
7. Paper industry: Heat recovery in bleaching process, heating of washing solution, etc. Company Profile
Suzhou Hengliu Machinery Equipment Co., Ltd. is an enterprise specialized in manufacturing series of plate heat exchanger, The company has the abundant technical force, specializing in the production of removable plate heat exchanger, brazed plate heat exchanger, fully welded plate heat exchanger, heat exchanger plate, gasket; Its products are widely used in chemical, fertilizer, pharmaceutical, oil, steel, alcohol, food, beverages, printing and dyeing, electricity, painting, electronic screen, rubber, house heating, hotel and other departments, It also can meet the need of heating, cooling, condensation, heat recovery and various technological requirements.
The company now has a professional technical innovation team and professional after-sales personnel. The company′s has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
Certifications
Our Advantages
After Sales Service
FAQ FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 7-10 workdays to finish products(when the order quatities is smaller than 200 pcs) ,and it is 10 days by DHL or Fedex if the goods are ready for samples. or it is 15-20 days by sea according to the different countries.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charges, after you confirm the drawings.
Q: Why choose Us?
A: We could make sure high quality and competitive price. OEM/ODM service is what we are good at Following fashion trend,our catalog will be updated regularly .
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us !

---
