Basic Info.
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
YAG Laser Marking Machine
Marking Method
Scanning Marking
Overrall Power
Around 300 Watt
Power Supply
220V/50Hz/5A/1p
Scanning Galvanometer
High Speed Digital Motor
Focus System
Two Red Light with Outline Indication
Repetition Accuracy
+-0.002 mm
Linear Speed
Around 8000 mm/S
Marking Size
70*70mm/110*110mm/175*175mm/300*300mm
User Interface
10.4 Inch Touch Screen
Language
English Russian Thailand Korea Arabic Portuguese
Transport Package
Wood Carton
Specification
57*66*155CM
Production Capacity
1000/ Year
Product Description

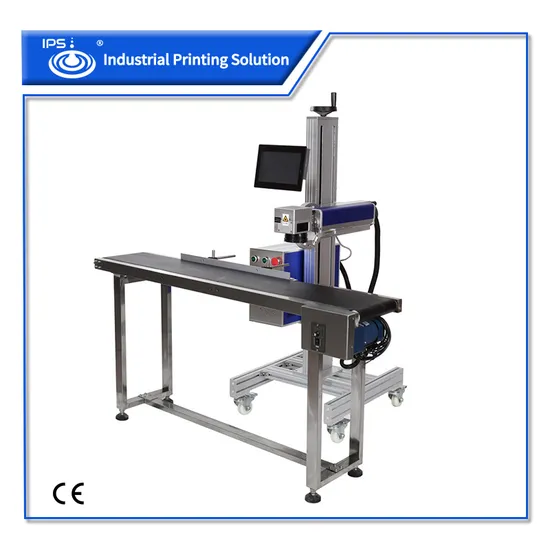

Flying 30 Watt 50W Mini small Fiber Laser Marking engraving Machine with CE Certificate for metal
Support customized staring screen and logo, multiple language
Fiber laser marking is a technique which uses computer-controlled laser beam to leave permanent mark on the surface of various kinds of object. The working principle of fiber laser marking machine is to use light amplication to cause chemical effect or burn part of the material to mark letters, symbols, bar codes, and other graphics on an object.
Applications
Laser marking machine is widely used in most kinds of product in different industrial, such as integrated circuit chip, computer accessories, industrial bearings, watches and clocks, electronic and telecommunication products, aerospace parts, auto parts, home appliances, hardware tools, molding, wire and cable, food packaging, jewelry, tobacco and etc.
SPECIFICATIONS OF IPS-LF30W
| Model | IPS-LF30W F |
| Laser Power | More than 30 watt |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 20K HZ-80K HZ |
| Linear Speed | around 8000 mm/ s or more |
| Marking Size | 75*75mm, 150*150mm, 200*200mm, 300*300mm |
| Min Linewidth | 0.01 mm |
| Min Font Height | 0.01 mm |
| Repetition Accuracy | +-0.002 mm |
| Overall Power | Less than 500 W |
| Power Supply | 220V/50-60HZ/5A/1P |
| Laser Gun Brand | MAX/ RAYCUS/ IPG/ Others |
| Laser Gun Type | Solid-state Fiber Laser |
| Scanning System | Digital Scanning Galvanometer with high seep moto |
| Focus system | Two Red Light with accurate position |
| Cooling system | Built-in Air Cooling |
| Indication System | Inner Outline Indication |
| Flying System | 10.4 inch professional fly marking system based on Android |
| Weight | Around 75KG |
| Overall Dimension | 57*66*155 CM |
| File Format Support | Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMPfile.
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases. |
>>
