5kv 1*6mm2 Airport Lighting Primary Cable for Airfield Lighting Equipment

Product Description

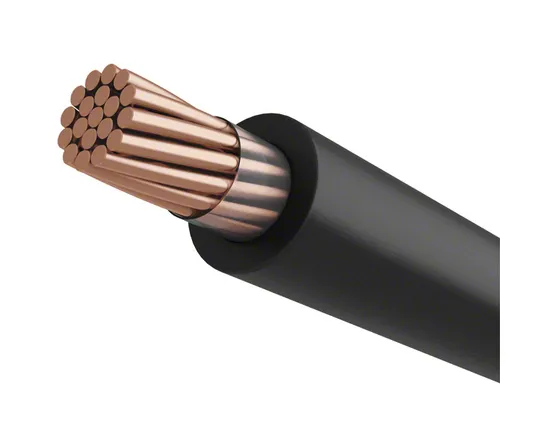

5KV 1*6mm2 Airport Lighting primary cable
Standards

In compliance with FAA Specification for L-824, AC 150/5345-7E

Application

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits,suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, can be installed in conduit, duct, aerial and direct burial


Construction

Conductor: Stranded bare or tinned copper.

Inner Semi-Conductor: Extruded semi-conducting compound.

Insulation: XLPE.

Outer Semi-Conductor: Semi conducting tape or extruded.

Shield: Copper or brass tape(s). Tinned copper wire braid can be offered upon request.

Sheath: PVC. PE/XLPE can be offered upon request.

Sheath colour: Black

Operating voltage:5000 V

Test voltage: 20000 VAC, according to IEC TS 62100

Partial discharge level test: 5000 V, no partial discharge

Operation temperature: - 40 °C to + 90 °C

Permissible short therm: + 250 °C

Lowest ambient temperature: - 60 °C

Bending radius: Static installation > 10 × outer .
FAA L-824 Type C Shielded 5kV
Standards
FAA AC 150 / 5345-7E
FAA L-824 Type
ICEA S-93-639 / NEMA WC74

Application
Airfield Lighting Cable are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits,suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, can be installed in conduit, duct, aerial and direct burial

Construction

Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
Sheath: PVC. PE/XLPE can be offered upon request.
Sheath colour: Black
Operating voltage:5000 V
Test voltage: 20000 VAC, according to IEC TS 62100
Partial discharge level test: 5000 V, no partial discharge

Operation temperature: - 40 °C to + 90 °C
Permissible short therm: + 250 °C
Lowest ambient temperature: - 60 °C
Bending radius: Static installation > 10 × outer .
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
