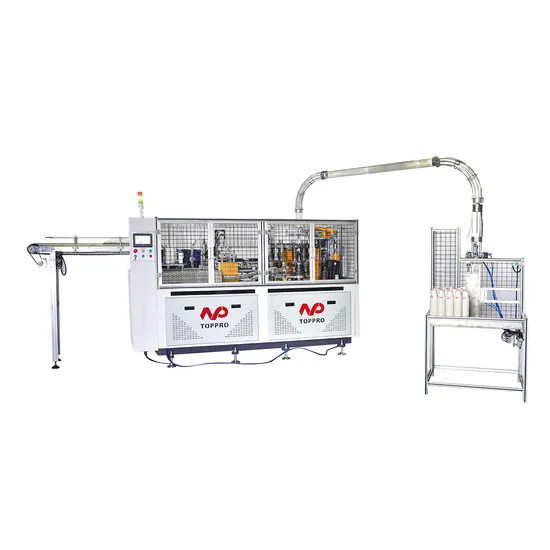

Paper Cup Machine with Camera Detection

Product Description

A. CHARACTERISTIC for 2024 New Design And High Speed Paper Cup Making Machine
GZB-600 High-speed paper cup forming machine is a machine that have double turntable, dual-segment high-performance with functions of automatic paper fan feeding, imported heater side seal, cup top lubrication, automatic bottom paper feeding, double curling artwork, automatic cup collect and stock. Can make cups both single PE and double PE, for cold drinks and hot drinks. This machine speed can reach130-150pcs/min.

Name	High Speed Paper Cup Machine
HS Code	8441309000
Model	GZB-600
The machine includes: Finished Cup Collect System, Safety Fence and Automatic Paper Fan Feeding System
Paper Cup Size	4-16oz
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	110-120pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	190-350gsm
Paper Cup bottom Diameter	45-65mm
Paper Cup Height	60-135mm
Paper Cup Degree	4-7.5mm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa User should buy Air Compressor
General power	24kw
Net weight	3660kgs
Measurement (mm)	3000*1550*2000
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer's requirement.

B. MACHINE ADVANTAGE for high speed paper cup machine
Foreign dual-bit technology ensure the long working life High-power servo motor for feeding and collecting
Double hot air heating system for bottom sealing High quality double-curling procedure
PLC system with encoder controlling 9 inch touch screen, a clearer vision
ultrasonic, sensors, solenoid valve and so on Quick buttons ensure full operation
Innovation
Self automatic paper feeding system
two sizes available for pairing:
1. direct feeding
2. side feeding
Effectively prevent paper jams and facilitate maintenance
Automatic camera detection system
In-built camera and computer will detect the quality of every single cup.
As soon as a defect is detected, such as an unclean spot on the wall of a cup,
the camera provides immediate feedback and the machine automatically removes the defective product.
C. COMPANY OTHER REALATED MACHINE for high speed paper cup machine:
we also have paper cup machine,paper plate machine,paper die cutting machine,ice cream cone sleeve machine,paper sleeve machine,paper bowl machine etc,can provide you full paper cup production line,if you are interested,pls feel free to contact me,
D. Packing details for high speed paper cup machine
Our Disposable Paper Cup Making machine will pe packed with strong woodencase, also will send
you english manual,electric diagram,operation CD,can teach you how to operate the machine and
change mold,
E. AFTER SERVICE for high speed paper cup machine
1. Paper Cup forming Machinewarranty: 1 year
2. the guide booklet will be sent with machine to guide the installation
process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, ajustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole leson!
6. we supply the consumable spare parts for free for one year use.
F. FACTORY VIEWE for high speed paper cup machine
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy". Welcome the clients at home and abroad to negotiate and cooperate.
G. Questions & Answers for high speed paper cup machineQ1. Are you trade company or factory? We are factory, not trade company.
Q2. What certification do you have?
We have CE, BV and SGS certification.
Q3. What is your delivery time?
Our mahcine need 25 -30 days in normal,
if your order is urgent, we can descuss aout that.
Q4. What is the HS code?
Our machine HS code is 8441309000
Q6. When the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory,
Q7. What is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine.
Q8. Can we make different size in one machine?
High speed paper cup machine only can one machine one size,not adjust change mold
Q9,what is the meterial is avalisable for this machine?
The material is pe coated paper,normally all buy the printed and cutted paper cup fan from paper factory,i can introduce you some good price paper factory.
Q2. where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province. china
you can by plane from your country to wenzhou city airport, then we will pick you up by car.
If you are interested in our machine,please don't hesitate contact me!
Contact Supplier:Anncy Chen(Miss)

---
