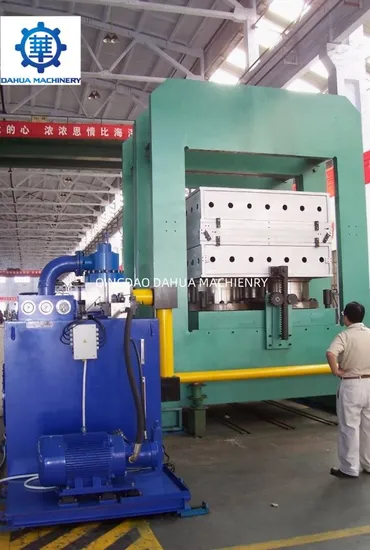

Anti-Slip Rubber Mat Making Machine

Product Description

Anti-Slip Rubber mat Making Machine 1.Material of steel plate: We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel 2.Weldment of frame : world technique Welded together as a whole part,Stewing fire treatment after weldment. (Carbon dioxide gas shielded welding,alloyed welding wire). submerged arc welding, VSR treatment after weldment. 3.Piston: the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable. 4.Heating way&precision temperature control: Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it ) Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C Also we can produce the machine with water cooling system. 5.Hydraulic system: (PLC control) the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure. We use OMRON,SIMENS CHNT , ect brand electric parts. 6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
Technical parameters:

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900	XLB-D1000X1000
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn	3.50mn
Platen Size	350X350mm	400X400mm	600X600mm	750X850mm	900X900mm	1000X1000mm
Daylight	125mm	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm	250mm
Heating Way	Electric	Electric	Electric	Electric	Electric	Electric
Platen Unite Area Pressure	20kg/cm2	31kg/cm2	28kg/cm2	25kg/cm2	31kg/cm2	31.7kg/cm2

Model	XLB-DQ1200X1200	XLB-DQ1300X2000	XLB-DQ1200X2500	XLB-DQ1500X2000	XLB-DQ2000X3000	XLB-DQ1400X5700
Total Pressure	3.15mn	5.60mn	7.50mn	10.00mn	18.00mn	28.00mn
Platen Size	1200X1200	1300X2000	1200X2500	1500X2000	2000X3000	1400X5700
Daylight	200mm	400mm	400mm	400mm	400mm	400mm
Working Layer	2	1	1	1	1	1
Piston Stroke	400mm	400mm	400mm	400mm	400mm	400mm
Heating Way	Electric or Steam	Electric or Steam	Steam	Steam	Steam	Steam
Power	3kw	8kw	9.5kw	11kw	11kw	11kw

All our presses can be customized according to your requirements in total pressure, platen size, daylight distance between plate, working layer and piston stroke. Detailed Photos
Applicable products
Packaging & Shipping
About Dahua : Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements."Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand. Hot sale
FAQ:
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.

---
