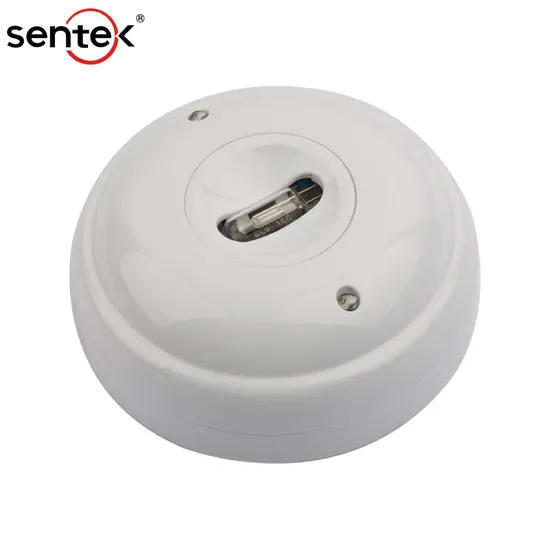

2 or 4 Wired Fire Alarm Fire Detector /UV Flame Detector

Product Description

Specification

Spectral Response:	185 to 260 nm
Effective Range:	25m (flame height :6 cm ; response time:10s)
Alarm Indicator:	LED continuously emitting red light
Remote Output:	Remoto LED
Temperature Range:	0°C to 50°C
Permissible Current:	80mA maximum
Humidity:	0 to 95% RH, no condensation or icing
Alarm Contact:	(for 4-wire) NO or NC Operation, Form A: 2.0A@30VDC/0.5A@125VAC
Dimensions	102mm (dia) x 40mm (ht) with base
Weight	130g with base

2 or 4 Wired Fire Alarm/UV Flame Detector
Product Features:
• 2 or 4 wire models
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• Sleek low-profile housing design
• Quick Detection of Flame from Distance
• High Sensitivity and Wide Directivity
• SMD circuit board design-satisfactory quality and reliability guaranteed
• N/C (normal/close)-N/O (normal/open)selectable relay output or remote LED indication output The range includes:

Model	2/4 wire	Voltage DC	Standby Current (Max.)	Alarm Current (Max.)	Start-Up Current (Max.)	Start-Up Time (Max.)	Permissible Current (Max.)	Alarm contact	Base model
FD 718-2	2	12-24V	50uA	50mA	1mA	30 Seconds	80mA	-	P/N992001
FD 718-2L	2	12-24V	50uA	50mA	1mA	30 Seconds	80mA	-	P/N992001
FD 718-4	4	12-24V	50uA	50mA	1mA	30 Seconds	80mA	Form A	P/N992001
