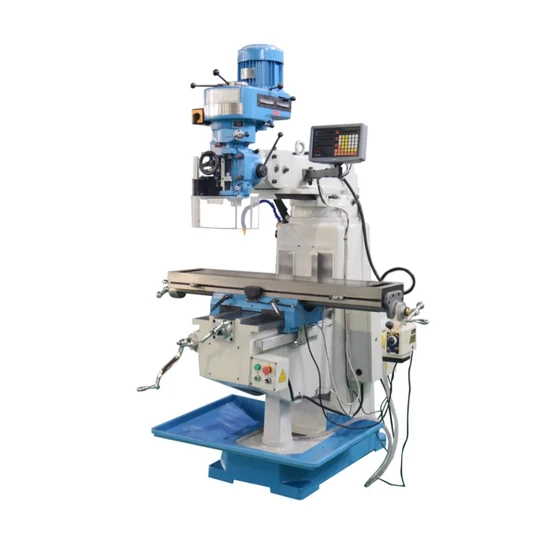

High-Precision Dml7550 Variable Speed Metal Vertical Drilling Machine

Product Description

Product Description low cost drilling machine DML7550W Milling, drilling, tapping, boring, reaming
Head swivels or tilts
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position, strong rigidity, strong cutting power 1.STANDARD ACCESSORIES face mill cutter with handle,drill chunk,taper shaft of drill chunk,4pcs internal six-side spanner,slanting block,sleeve or dull
spanner
2.OPTIONAL ACCESSORIES
vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support table

Specification	DML7550	DML7550C	DML7550W	DML7550CW/DMLX7550CW	DML7550Z
Max. drilling dia.	50	50	50	50	50
Max. horizontal milling dia.	100	100	100	100	-
Max. vertical milling dia.	25	25	25	25	25
Max. boring dia.	120	120	120	120	-
Max. tapping dia.	M16	CM16	M16	M16	Φ12 drilling cast
Distance. spindle to table surface	90-490	90-490	90-490	90-490	20-500
Spindle speeds range	230-1825	115-1750	V230-1825/60-1350H	V230-1750/60-1350H	65-1500
Spindle travel	120	120	120	120	120
Table size	800 x 240	800 x 240	800 x 240	800 x 240	800 x 240
Table travel	400 x 230	400 x 230	400 x 230	400 x 230	400 x 230
Overall dimensions	1100 x 1100 x 2080	1100 x 1100 x 2080	1100 x 1100 x 2080	1100 x 1100 x 2080	85 x 950 x 1995
Motor	0.85/1.5	0.85/1.5	V0.85/1.5,2.2H	V0.85/1.5,2.2H	1.5
N.W/G.W.	610/770	700/850	850/1000	900/1050	750/900

Company Profile SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future. Order Evaluation Exhibition Customer Photos Certifications FAQ 1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you . 2. What is your payment terms ? A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 3: Where is our factory located? How can I visit there? A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us. 4. What is your delivery time ? The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Can you send the service engineer to our company ? We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect. DML7550 Mini Vertical Drilling and Milling Machine

---
