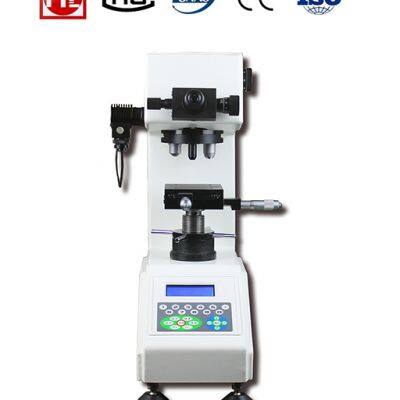

Model HV-1000 Micro hardness tester is micro Vickers hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Model
| HV-1000
|
Test force
| 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
|
Min measuring unit
| 0.5µm
|
Data output
| LCD screen display
|
Max Height of Specimen
| 80mm
|
Distance of Indenter to outer wall
| 95mm
|
X-Y Testing table
| Dimension: 100*100mm Max mobile：25*25mm
|
Conversion Scale
| HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
|
Hardness measuring range
| 8~2900HV
|
method of testing force applied
| Automatic（Loading, Dwell, Unloading）
|
Test microscope magnification
| 400X(Measuring)，100X（observation）
|
Duration time
| 0~60s
|
Power supply
| AC220V+5%，50-60Hz
|
Overall Dimension
| 405*290*480mm
|
Net weight
| About 25Kg
|
