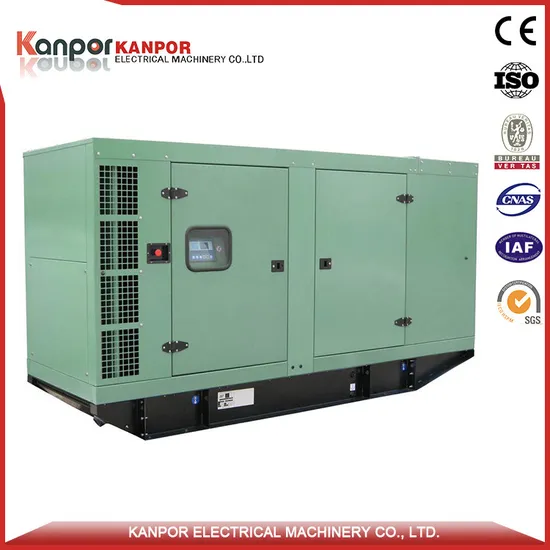

280kw Diesel Generator Set 350kVA Economical Powered by Fawde Engine

Product Description

Product Description
1.15~400kva
2. Powered by FAWDE Engine
3. With Stanford / Leroy Somer / Marathon Alternator
4. With CHINT / MCCB & Electronic Components5. Electric Start with Battery6. Base Integrated Fuel Tank7. ATS, Deepsea / ComAp / Smartgen Controller8. Comply with ISO8528/GB28209. After-sale Services
Product Features
Full control panel with power indicator light and oil lightEmergency shutdown for low oil pressure and high water temperatureLarge fuel tank ensure continuous runningLow noise & vibrationCompact structureReliable performanceEasy for installation and maintenance50Hz and 60Hz both are available for choiceProduct Data

Technical Data
Genset Model		KPFA176	KPFA220	KPFA250	KPFA275	KPFA330	KPFA350	KPFA385
Rated Power	KW/KVA	128/160	160/200	180/225	200/250	240/300	260/325	280/350
Standby Power	KW/KVA	140/176	176/220	200/250	220/275	264/330	280/350	308/385
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		CA6DF2-19D	CA6DL1-24D	CA6DL2-27D	CA6DL2-30D	CA6DM2J-39D	CA6DM2J-39D	CA6DM2J-41D
Engine Power	KW	154	194	226	251	316	316	330
Air intake way		Turbo	Turbo	Turbo	Turbo	Turbo	Turbo	Turbo
Governor		Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Cylinder	QTY	6	6	6	6	6	6	6
Bore*Stroke	mm*mm	110×125	110×135	112×145	112×145	123×155	123×155	123×155
Displacement	L	7.12	7.7	8.57	8.57	11.05	11.05	11.05
Fuel Consumption	g/kw.h	200	196	195	195	189	189	195
Compression Ratio		17:1	17.5:1	17.5:1	17.5:1	17.5:1	17.5:1	17.5:1
Alternator Model		STF-274F	STF-274H	STF-274J	STF-274K	STF-314D	STF-314ES	STF-314FS
Voltage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	2550x900x1600	2700x900x1800	2700x900x1800	2700x900x1800	3000x1000x1800	3000x1000x1800	3000x1000x1800
Open Type Weight	kg	1610	2160	2230	2480	2800	2850	2950
Soundproof Size	mm	2950x1050x1800	3200x1150x1900	3200x1150x1900	3200x1150x1900	3600x1300x2000	3600x1300x2000	3600x1300x2000
Soundproof Weight	kg	2510	3060	3120	3450	3900	3950	4030

Options:

No.	Item	Brand	Note
1	Canopy/cabin	Kanpor	option
2	ATS system	ABB/SOCOMEC/Aisikai	option
3	Parallel system	Delix/ABB	option
4	Trailer	Kanpor	option
5	Fuel tank	Kanpor	option
6	Controller	DSE/Smartgen/Mebay	option

Detailed Photos
About KANPOR
Kanpor Enterprise is located in economic development industry zone of Fu'an City, a coastal city in East Fujian that's noted as the cradle of generator and motor in China.
Kanpor Electrical Machinery Co.,Ltd is a professional manufacturer of generator, gasoline generator, gas generator, diesel generator set, water pump and spare parts. We enforce the asministration model of ISO9000 System, carry out the strategy of famous brand, and insist on the principle of scientific innovation, exploits, new products and meet the tendency of international market, and develop the international market through multivariate ways.
We have the solid technical force and cultivate the strict quality-control system. Under guidance of business principle "Quality for Survival and Credit for Development", we adhere to our management philosophy to build up a good business image and brand image. Thanks to the big choices, our products have exported around the world, winning the great acceptance by clients.
Our company had become the first largest of the top 10 Enterprises in Ningde Area and got the cartificates of "BV", "ISO9000", "CE", etc. In 2000, our company was classified as " Class A Enterprise" by China Custom.
Striving for progression and innovation, we are dedicated to supplying you with high-quality service. We sincerely hope to set up business cooperation with you for the same promising future.
The 133rd Canton Fair in April 2023 Certifications
Packaging & Shipping
Packaging: Plywood Case / Plastic Film
Shipping: POL ( Fuzhou Port )FAQ

Q1: Are you Trading company or Manufacturer?

A: We have our own factory for OEM manufacturing product, also trade with all electrical parts.

Q2: What's your warranty period?

A: One year or 1200hours (accord to whichever reach first) from Ex-Factory date. But based on some special project, we can extended our warranty period.

Q3.what is your power range of your diesel generator?

A: we can provide power from 6KVA-3000KVA.

Q4: Does your generators has global warranty?

Yes, most of our products like Cummins, ShangChai, Yuchai, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stanford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Q5: What's the MOQ?

A: 1 Set.

Q6: What's your delivery time?

A: Spare parts for about 3-5 days; Diesel generator set about 30days.

Q7: Do you accept OEM/ODM service?

A: Yes, we can accept OEM & ODM service, and provide customized services according to your requirements.

Q8: What's your payment terms?

A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.

Q9: How could I trust you?

A:We are a professional supplier of diesel generator sets. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.

---
