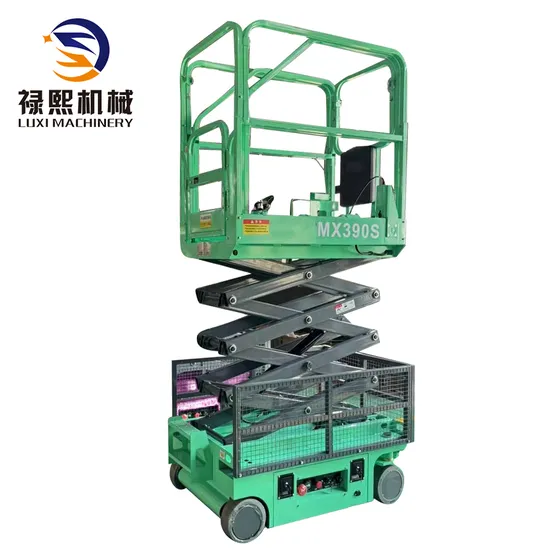

2m Compact Mini Self-Propelled Scissor Lift for Narrow Space

Product Description

2m compact mini self-propelled scissor lift for narrow space
Advantage: 12 years lift platform manufacturing enterprise integrating R&D, production and sales. Experienced export team World famous brand spare parts Quick responses For after-sale service,we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply 24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.

Parameters
Model	AWPS2358HD	AWPS4679HD	AWPS4696HD	AWPS3212HD	AWPS2014HD	Remarks: 1.All the Diemensions here is for your reference,The Finished Products are subject to the actual Dimensions. 2.We accept customization.
Safe Working Load(kg)	230	460	460	320	200
S.W.L on extension platform(kg)	113	113	113	113	113
Number of passengers (indoor)	2	2	2	2	2
Number of passengers (outdoor)	1	1	1	1	1
Max working height(m)	7.8	9.9	11.6	13.8	15.7
Max height of platform(m)	5.8	7.9	9.6	11.8	13.7
Overall length(m)	2.06	2.72	2.72	2.72	2.86
Overall width(m)	0.76	1.15	1.15	1.15	1.25
Overall length (rails up)(m)	2.19	2.4	2.4	2.52	2.63
Overall length (rails down)(m)	1.77	2	2	2.12	2.26
Platform size(m)	1.88x0.76	2.5×1.12	2.5×1.12	2.5×1.12	2.63×0.93
Platform extension size(m)	0.9	0.9	0.9	0.9	0.9
Min ground clearance(stowed)(m)	0.09	0.11	0.11	0.11	0.11
Min ground clearance(raised)(m)	0.019	0.019	0.019	0.019	0.019
Wheel base(m)	1.57	2.09	2.09	2.09	2.23
Turning Radius (inside /outside)(m)	0.5/1.9	0.5/3	0.5/3	0.5/3	0.5/3.2
Lifting/driving motor(V/kw)	24/3.2	24/3.2	24/3.2	24/4.5	24/4.5
Travel speed (stowed)(km/h)	3.5	3.5	3.5	3.5	3.5
Travel speed (raised)(km/h)	0.8	0.8	0.8	0.8	0.8
Up/down speed(s)	24/31	47/40	50/44	61/52	70/52
Battery(Ah)	4x6/232	4×6/232	4×6/232	4×6/280	4×6/280
Charger(VA)	24/25	24/25	24/25	24/30	24/30
Gradeability	0.250	0.250	0.250	0.250	0.230
Max working slope	1.5°/3	2°/3	2°/3	1.5°/3	1.5°/3°
Tire(mm)	φ305x100	φ406×125	φ406×125	φ406×125	φ406×125
Overall weight(kg)	1420.00	2590.00	2670.00	3208.00	3300.00

FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 -30 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 12 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
