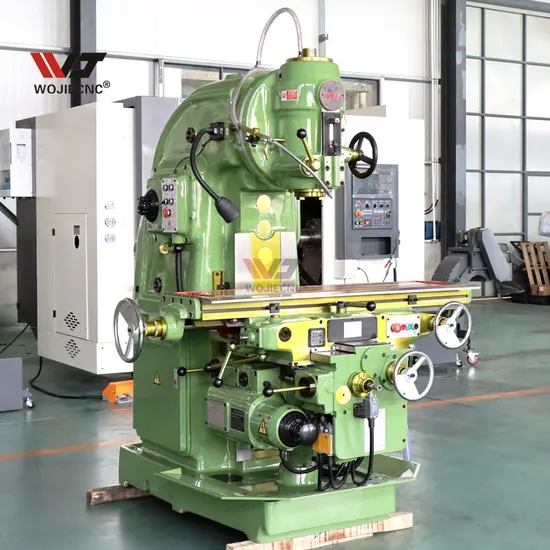

Durable X5032 3-Axis Manual Milling Machine with Heavy-Duty Gearbox for Metal Processing

Product Description

Product Description
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Product Parameters

Main specification	X5032
Table size	1320*320 mm
Spindle taper	7:24 ISO 50
Spindle bore	29 mm
Distance from spindle nose to table surface	45-415 mm
Distance from spindle axis to bed vertical guideway surface	350 mm
T-slot(number/width/spacing)	3/18/70
Max. longitudinal travel manual/automatic	720/700 mm
Max. cross travel manual/automatic	255/240 mm
Max. vertical travel manual/automatic	370/350 mm
Rapid speed longitudinal/cross/vertical	2300/2300/770 mm/min
Max. turning angle of vertical milling head	±45°
Spindle travel	85 mm
Number of spindle speed	18(steps)
Spindle speed range	30~1500 r.p.m
Main motor power	7.5 KW
Feed motor power	1.5 KW
Overall dimension	2530*1890*2380
Net weight/Gross weight	3200/3400

Detailed Photos

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
