80g 120g Gauge Radar Water Level Sensor Radar Level Sensor Transmitter

Product Description

80g 120g Radar Level Meter Gauge Radar Water Level Sensor Radar Level Sensor Transmitter

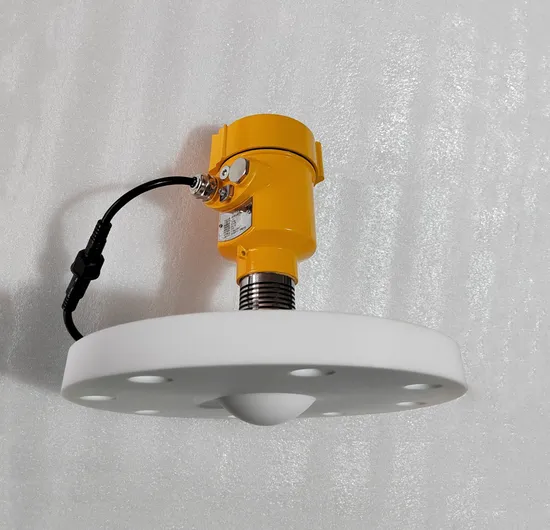

Product IntroductionApure radar level meter is operating at 76-81 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200ºC. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
The main benefits of using 78 GHz over devices using lower frequency are:n Based on the self-developed CMOS millimeter wave RF chip, a more compact RF architecture, a higher signal-to-noise ratio, and a smaller blind zone are realized.n 5GHz working bandwidth means higher measurement resolution and accuracy.n 3°antenna beam angle, so the interference in the environment has less impact on the instrument, and the installation is more convenient.n Shorter wavelength yields good reflection properties on sloped solids, so aiming towards material angle of repose is usually not necessary.n Support remote debugging and remote upgrading to reduce the cost of field personnel.
Technical specifications

Frequency	76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring range	x0: 0.3 m ~ 60m x1: 0.08m~30m x2: 0.6m ~ 120m
Measurement accuracy	±1mm
Beam angle	3°/6°
Minimum measured dielectric constant	>=2
Power	15~28VDC
Communication	2x: MODBUS 3x: HART/Series
Signal output	2x: 4 ~ 20mA or RS-485 3x: 4~20mA
Fault output	3.8mA, 4mA, 20mA, 21mA, hold
Field operation / programming	128 × 64 dot matrix display / 4 buttons PC software Bluetooth
humidity	≤95%RH
Enclosure	Aluminum alloy, stainless steel
Antenna type	Lens antenna/anti-corrosive antenna / flange isolated by quartz
Process temperature	T0:-40~85ºC; T1:-40~200ºC; T2:-40~500ºC; T3:-40~1000ºC
Process pressure	-0.1~2MPa
Product Size	Ø100*270mm
Cable entry	M20*1.5
Recommended cables	AWG18 or 0.75mm²
Protection class	IP67
Explosion-proof grade	ExdiaIICT6
Installation method	Thread or flange
Weight	2.480Kg/2.995Kg
Packing box size	370*270*180mm

If you have any questions or want to know more details about the product, please contact us!
Certificate
Company Profile
Click here to view more information about the company
Packing & Shipping
FAQ
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
More information please contact us, we will provide the timely feed

---
