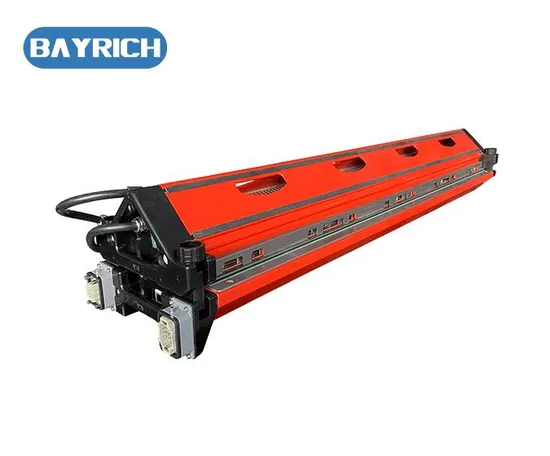

PU PVC Conveyor Belt Hot Press Splicing Joining Machine

Product Description

Bayrich Air cooled press is using for hot melt PU PVC PVK PE conveyor belt ★Detail: All-in-one, the ultimate solution for both workshop and on-site jobs: comfortable, fast and easy to program.
★Feature :
1.Compact,no need external elements.
2.Air-cooled.fast .10mins splicing time for one cycle belt joint work .
3.2 dwell levels of temperature.
4.Light and easy to handle. Flight case included.
5.Different electrical configurations available.
★Description:
Made of aluminium. Available for 6 different widths of belt: 300, 600, 900, 1200, 1500 and 1800mm. The press includes pneumatic pressure system, heating system and air cooling system, together with a clamping system for the belt. The press is divided into 2 parts (top and bottom); each integrates stainless steel platens with Teflon heating elements and temperature probes. Length of the platen: 130mm. Completely automatic process programmed from the built-in controllers (pressure, heating, dwell time and cooling).
The press is supplied with a flight case with 4 multidirectional wheels and a handle.
Controllers
Built in the frame of the press and easy to program. Automatic control of the whole process of joint, once the melting temperature of both platens, the dwell time, the cooling temperature and the pressure have been set. Automatic end-of-cycle buzzer.
Pressure system
The pressure is supplied equally by means of a wide section airbag inside the bottom frame. 2,0 Bar maximum pressure . All the models include compressor, pressure switch .
Heating system
Fast heating of both platens by means of teflon heating elements. Each one is made with an asymmetrical winding to supply an even heat distribution all along the belt. The elements get warmer on the ends to compensate the loss of temperature and avoid heat concentration in the middle. Temperature programable up to 200º C / 392º F.
Cooling System
The cooling system consists of several high-performance fans placed on the top frame. They activate automatically at the end of the dwell temperature process.
Clamping System
The belt is fixed by means of a clamping bar built-in the frame.
Bolts
Easily adjustable to different belt thicknesses. Steel made with safety factor 2 (capable of withstanding twice the maximum load pressure of the press).
★Technical Datasheet

Model	SA 300	SA 600	SA 900	SA1200	SA 1500
Effective length	305mm / 12″	610mm / 24″	914mm / 36″	1219 mm / 48″	1524 mm / 60″
Effective width	130mm / 5.1″	130mm / 5.1″	130mm / 5.1″	130mm / 5.1″	130mm / 5.1″
Weight upper part	10 kg	16 kg	20 kg	28.5 kg	30 kg
Weight lower part	11 kg	13 kg	18 kg	25.5 kg	30 kg
Total weight	21 kg	30 kg	38 kg	54 kg	62 kg
Overall Height	220 mm	225 mm	225 mm	225 mm	225 mm
width
Length	505 mm	805 mm	1105 mm	1405 mm	1705 mm
Max. pressure	1.5 Bar / 22 PSI	1.5 Bar / 22 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI
Max. temperature	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F
Power()	1.2 kW	3.2 kW	4.5 kW	5.8 kW	7 kW
press+case weight	39KG	52kg	66kg	80kg	95kg
press+case+wooden box weight	50kg	72kg	89kg	104kg	115kg
wooden box size(L*W*H)MM	790*430*420	1090*430*420	1390*430*420	1720*450*430	1990*430*420

★Machine Detail

Cooling Fan and Aluminium Frame	Temp. Controller
Power Cable	Power Cable
Power Cable	Heating Area

Bayrich Air cooling hot press machine application in Verious industrial
