Continuous Pipe Chain Vertical/ Horizontal Conveyor

Product Description

Production Details

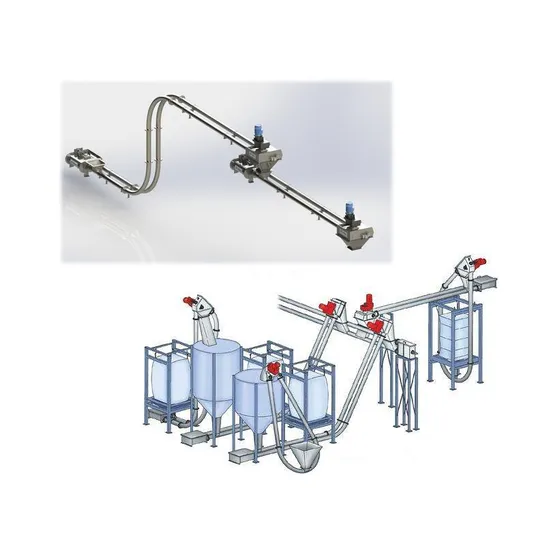

The pipe chain conveyor, also known as a pipe chain machine, pipe conveyor, or chain conveyor, is an ideal equipment for continuous transportation of powder, small particles, and small pieces of loose materials. It can be combined horizontally, obliquely, and vertically for transportation. In a closed pipeline, the chain is used as a transmission component to drive the movement of the material pipeline.
When transported horizontally, the material particles are pushed by the chain in the direction of movement. When the internal friction force between the material layers is greater than the external friction force between the material and the pipe wall, the material moves forward with the chain, forming a stable material flow;
When vertically conveying, the material particles inside the pipe are pushed upwards by the chain, and the lower feeding prevents the upper material from sliding, resulting in lateral pressure, which enhances the internal friction force of the material.
When the internal friction force between the materials is greater than the external friction force between the material and the inner wall of the pipe and the material's self weight, the material is transported upwards with the chain, forming a continuous material flow.
Technical Parameters

Model	Power KW	linear velocity M/S	Speed R/min	Conveying capacity M³/H	MAXIMUM TORQUE N·M	Maximum tensile force N	NOTICE
PC-80	4.0	0.30	20.7	3.9	1810	1300	Maximum pulling force at low speed up to 1.5 tons
		0.36	24.9	4.7	1504	1090
		0.40	27..6	5.2	1357	980
PC-100	5.5	0.30	17.5	6.0	2943	1800	Low speed maximum pulling force up to 2 tons
		0.36	21.0	7.2	2452	1500
		0.40	23.4	8.0	2200	1350
PC-150	7.5	0.30	13.4	13.7	5240	2450	Low speed maximum pulling force up to 3 tons
		0.36	16.0	16.4	4390	2050
		0.40	17.9	18.2	3923	1840
PC-200	11.0	0.30	11.4	27.4	9034	3590	Low speed maximum pulling force up to 4 tons
		0.36	13.7	32.9	7518	2990
		0.40	15.2	36.5	6776	2700

Units in the pipeline chain conveyor system
Product Features
Advantages of Pipe Chain Conveyors
Convenient maintenance. The conveyor is mainly driven by chains to drive the movement of materials, with a simple structure and convenient maintenance. Regular observation and maintenance of the chains and unit lubrication are only necessary to maintain the long-term stable operation of the equipment.
Refuse to raise dust. The pipe chain conveyor is completely enclosed, and its dust proof design allows it to handle and contain dust, odors, toxic, and even harmful substances
Application Area
Pipeline chain conveying system:
1. Plastic industry: PVC, PP, PE powder, ABS, PC, PP, PE particles.
2. Fine Chemicals: Dyes, pigments, coatings, carbon black, titanium pigments, iron oxide, ceramic powder, heavy calcium carbonate, fine particle calcium carbonate, bentonite, molecular sieve, porcelain clay, silicon powder, activated carbon.
3. Mining: urea, ammonium chloride, Ammonium bicarbonate, soda powder, solid pesticide, tungsten powder, fish oil, copper powder, coal powder, block phosphate, bauxite, etc.
4. Building materials: cement, clay, yellow sand, quartz sand, clay powder, silicon, lime powder, dolomite powder, sawdust, glass fiber, silica, painting powder, etc.
5. Food industry: flour, starch, grains, milk powder, food additives, etc.
