| Model | TS06-4F-2F--30W |

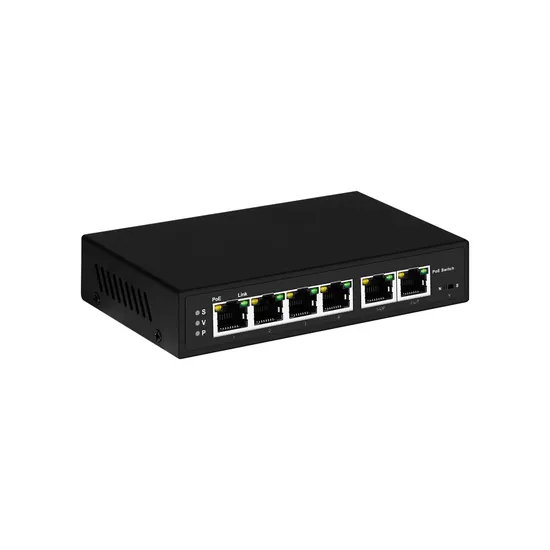

| Product | 6 Port Fast Ethernet PoE Network Extender |
| PoE Input port | Supports 1/2(+),3/6(-);4/5(+),7/8(-) MAX Input Power 30W |
| PoE Output port | IEEE802.3af/at MAX Output Power30W |
| Function | N:(Standard normal) V:(Port isolation) S:(Super mode) |
| Power | 1:Default:No Power |
| Watt | Standby Power Consumption:≤3W; Full-load Power Consumption:≤30W; |
| DC In | As Network Extender: DC9-57V MAX 0.5A As PoE Network Extender :DC37-57V MAX 0.5A |
| LED Indicator | P:Power LED V:(Port Isolation LED) S:(Super Mode LED) Port:(Green=Link LED+Orange=PoE LED) |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u100BASE-TX IEEE 802.3x IEEE 802.3af/at |
| Transmission Mode | Store and Forward(full wirespeed)) |
| Bandwidth | 1Gbps |
| Packet Forwarding | 1.15Mpps |
| MAC Address | 1K |
| Buffer | 768K |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) |
| Operating Temperature/Humidity | -10~+55°C;5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
| Product size/Packing size(L*W*H) | 140mm*80mm*28mm 215mm*175mm*45mm |
| N.W/G.W(kg) | 0.3kg/0.4kg |
| Installation | Desktop |
| Lightning protection level | 3KV 8/20us; IP30 |
| Certificate | CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS; |
| Warranty | Whole device for 1 year(Accessories not included) |
