US$2.50-2.80
|
100 kg
(MOQ)
|
Basic Info.
Application
Shock-Absorbing
Processing
Molding & Injection
Transport Package
Plastic Pallet
Production Capacity
1000000kg
Product Description
Introduction
Zabarh has more than 20 years of extensive experience in the rubber compound and rubber products industry, our main business focuses on rubber compounds, with raw rubber materials and rubber products as supporting services. Our clients span various sectors, including rubber vibration-damping products, seals and oil seals, conveyor and transmission belts, rubber hoses, rubber rollers, sports rubber components, rubber cables, footwear materials, mining rubber components, and more. We have developed over 10,000 mature formulations and employ more than 80 professional rubber engineers and over 60 process engineers. Currently, we operate six factories covering raw materials, compounding, and product manufacturing, with over 800 employees in our company.
Trust comes from expertise!
We supply the following Rubber Compounds: Natural Rubber (NR) Styrene-Butadiene Copolymer (SBR) Polybutadiene (BR) Iso-butylene-Isoprene Copolymer (IIR, CIIR, BIIR) Ethylene-Pr-opylene-Diene-Monomer (EPDM) Polychloroprene (CR) Acrylonitrile-Butadiene Copolymer (NBR, HNBR) Chlorosulfonated Polyethylene (CSM) Fluoroelastomer (FKM) Polyacrylate rubber (ACM) Epi-chlorohydrin rubber (ECO) Silicone rubber (VMQ) Characteristics of Different Rubber Compounds
| The characteristics of rubber compounds |
| Natual
rubber | SBR | EPDM | Neoprene
CR | Nitrile NBR | Acrylic
ACM | AEM | IIR | Silicone
VMQ | HNBR | FKM / FPM | Fluoro
- silicone
FVMQ |
Hardness Sha A
ASTM D 2240 | 30-95° | 40-95° | 25-90° | 30-90° | 40-100° | 50-85° | 45-90° | 40-90° | 40-90° | 50-95° | 40-95° | 40-80° |
Tensile strange
ASTM D 412 C | 15 - 30 Mpa | 6 - 20 Mpa | 7 - 20 Mpa | 12 - 20 Mpa | 5 - 16 Mpa | 10 - 15 Mpa | 8 - 15 Mpa | 8 - 15 Mpa | 5 - 10 Mpa | 14 - 20 Mpa | 6 - 14 Mpa | 7 - 10 Mpa |
Elogonation strange
ASTM D 412 C | 400 - 600
% | 200 - 700
% | 300 - 700
% | 300 - 800
% | 250 - 700
% | 300 - 400
% | 350 - 500
% | 200 - 400
% | 200 - 600
% | 300 - 500
% | 200 - 450
% | 200 - 400
% |
| Color | Full Range | Full Range | Limited
Range | Full Range | Limited
Range | Black | Limited
Range | Limited
Range | Full Range | Limited
Range | Limited
Range | Limited
Range |
HEAT RESISTANCE
(°C)
Maximum Continuous
Maximum Intermittent | 105°C | 85°C
115°C | 130°C
150°C | 95°C
125°C | 100°C
130°C | 150°C
180°C | 150°C
180°C | 100°C
140°C | 205°C
300°C | 125°C
160°C | 205°C
300°C | 180°C
200°C |
| LOW TEPERATURE | -60°C | -55°C | -50°C | -40°C | -20°C | -20°C | -40°C | -30°C | -60°C | -30°C | -20°C | -60°C |
RESISTANCES
Oxidation | Fair | Fair | Excellent | Very Good | Good | Excellent | Excellent | Good | Excellent | Excellent | Outstan-
ding | Excellent |
RESISTANCES
Ozone & Weathering | Poor | Poor | Outstan-
ding | Very Good | Fair | Excellent | Excellent | Good | Outstan-
ding | Very Good | Outstan-
ding | Outstan-
ding |
OIL RESISTANCE
*ASTME Oil No.1
@ 20°C | Poor | Poor | Fair | Excellent | Excellent | 100°C
Excellent | 100°C
Excellent | Fair | Excellent | Excellent | Excellent | Excellent |
OIL RESISTANCE
*ASTME Oil No.1
@ 100°C | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Good | Good | <150°C
Good | <125°C
Excellent | Fair | Good | Fair | <150°C
Excellent | <150°C
Excellent |
OIL RESISTANCE
*ASTME Oil No.3
@ 20°C | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Good | Excellent | Excellent
100°C
Good | Excellent
100°C
Fair | Fair | Good | Fair | Excellent | Excellent |
OIL RESISTANCE
*ASTME Oil No.3
@ 100°C | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Fair | Good | 150°C Fair | 150°C Poor | Fiar | Fair | Fair | 150°C
Excellent | 150°C
Excellent |
FUEL RESISTANCE
ASTME Fuel B @
40°C | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Poor | Fair | Poor | Unsuitable | Low | Unsuitable | - | Excellent | Fair
good at
low
temp) |
SOLVENT
RESISTANCE
(20°C) Alcohol | Good | Good | Good | Good | Good | Good | Fair | Low | Good | Excellent | Good | Good |
SOLVENT
RESISTANCE
(20°C) Ace-tone | Fair | Fair | Good | Fair | Unsatisfac-
tory | Unsatisfac-
tory | Fair | Low | Fair | Good | Unsuitable | Unsuitable |
SOLVENT
RESISTANCE
(20°C) Benzene | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Unsatisfac-
tory | Fair | Good | Good |
CHEMICAL
RESISTANCE Acids | Fair | Fair | Good | Good | Good | Poor | Fair | Good | Fair | Good | Excellent | Good |
CHEMICAL
RESISTANCE Bases | Good | Good | Fair | Fair | Fair | Poor | Good | Fair | Fair | Good | Good | Fair |
PHYSICAL
STRENGTH | Excellent | Good | Good | Good | Good | Good | Good | Good | Poor | Good | Good | Poor |
| COMPRESSION SET | Good | Good | Fair to
Good | Fair to
Good | Good | Good | Fair | Low | Good | Good | Good | Good |
TEAR & ABRASION
RESISTANCE | Excellent | Good | Good | Good | Good | Good | Good | Good | Poor | Very Good | Good | Poor |
| RESILIENCE | Excellent | Good | Very Good | Very Good | Good | Poor | Fair | Good | Good | Fair | Fair | Fair |
PERMEABILITY
TO GASES | Poor | Fairly Low | Low | Low | Low | Low | Very Low | Low | Fairly Low | Good | Very Low | Fairly Low |
ELECTRICAL
STRENGTH | Excellent | Excellent | Good | Good | Poor | Fair | Good | Good | Excellent | Poor | Good | Excellent |
| FLAME RESISTANCE | Poor | Poor | Self- Extin-
guishing | Self- Extin-
guishing | Poor | Poor | Fair | Low | Good | Poor | Self- Extin-
guishing | Self- Extin-
guishing |
| WATER RESISTANCE | Very Good | Good | Good | Good | Good | Poor | Good | Excellent | Good | Very Good | Good | |
Common Rubber Compounds and Their Unique Features Natural Rubber/Styrene-Butadiene Rubber/Butadiene Blend (NR/SBR/BR):
A versatile polymer blend of synthetic rubbers, NR/SBR/BR mimics the properties of general-purpose natural rubber and is widely used in off-the-road (OTR) tires. Styrene-Butadiene Rubber/Butadiene Blend (SBR/BR):
Commonly found in shoe soles, seals, and various rubber belts, this polymer blend improves abrasion resistance when combined with butadiene (BR). Ethylene Pro-pylene Diene Monomer Rubber (EPDM):
Known for its superior heat tolerance, elasticity, and ozone/UV resistance, EPDM is widely applied in automotive seals and as an electrical insulator. High Heat EPDM:
A high-performance EPDM compound, is optimized for extreme high-heat applications like automotive damping and foaming products. Chloroprene Rubber (CR):
With balanced properties like temperature tolerance, flame resistance, and chemical stability, CR is ideal for gaskets, wire insulation, and rubber belts. Epi-chlorohydrin Rubber (ECO):
ECO is a specialized polymer with excellent heat and oil resistance, making it suitable for various automotive components. Nitrile Rubber, Hydrogenated Nitrile Rubber Blends (NBR, HNBR):
This butadiene-derived rubber excels in chemical and oil resistance, commonly used in oil hoses, seals, and disposable gloves. Nitrile/Plastic Blends (NBR/PVC, NBR/SBR/NR):
Easier to process and cost-effective, these blends are used in fire hoses, stators, and rollers, though they have slightly lower resistance in some areas. Butyl Rubber, Butyl Rubber/Natural Rubber Blend (IIR, IIR/NR):
Comprising iso-butylene and isoprene, this rubber is known for its durability and is used in defense boots, gloves, tire liners, and sealants. Silicone Rubber:
A family of elastomer polymers designed for high-heat applications, silicone rubber is commonly found in automotive heat-resistant components. Fluo-rine Rubber (FKM):
A high-end fluoroelastomer with exceptional oil and heat resistance, FKM is favored in industries like aerospace for applications such as high-performance gaskets, despite its higher cost. Our Compound Packaging:
The compounds, packaged according to customers' requirements, are then delivered in different forms and different packaging:
Delivery forms:

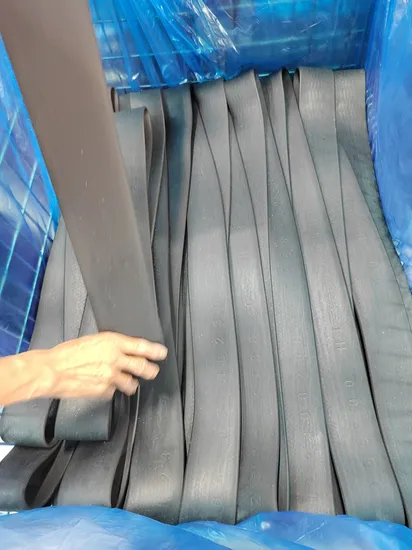

(Perforated) Endless strips;Narrow endless strips;Calendared, rota-cured sheet, profile extrusion and jointing
Slabs, plates and sheets
Continuous wig wag sheet / wig wag pipped strip
Wide calendared rolls (foil backed with perforation capability)
Narrow calendared tapes (with perforation capability)
Rolls
Filtered round log
Molded envelopes and curing tubes
Packaging forms
Plastic Pallets, Wooden boxes
Why choose Zabarh?
At Zabarh, we offer a wide range of rubber types and have extensive experience in selecting and producing the ideal compound to meet customer needs. With our in-house automated mixing systems, we ensure that the correct formulation is created from the thousands of options Zabarh has developed.
Every batch of rubber produced by Zabarh is computer-controlled and undergoes 100% testing before it is approved for production. This includes the use of finite element analysis software to simulate a broad range of conditions. This guarantees traceability from production to the finished product, and ensures the rubber batch meets the specific requirements of our customers.
With over 20 years of experience, Zabarh excels at identifying and selecting the right rubber compounds for even the most challenging applications and operating environments.
>>
