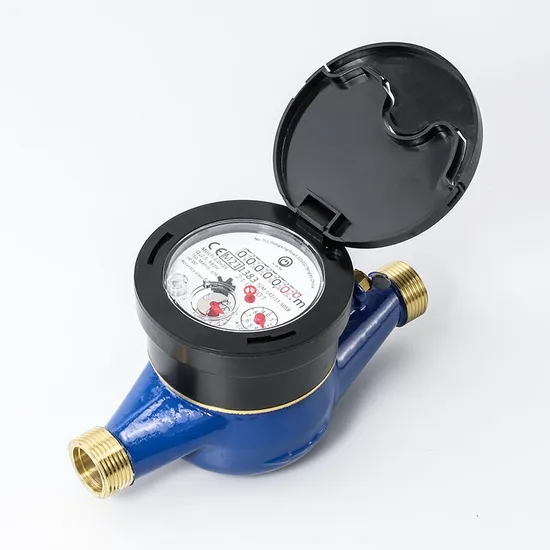

Economic Type Multi Jet Brass Cold Water Water Meter (MULTI-G ITRON Version)

Product Description

NWM Multi-G is multi jet water meter with magnetic transmission, super dry register for residential application and meets to the requirements of ISO4064 standard.
MAIN FEATURE:
All the materials in contact with water, consciously selected by the known resistance to corrosion; Cold water meter under current standard for lower than 30ºC(T30), but NWM Multi-G meter can be used safely in water temperature up to 50ºC(T50); Super dry register capsule which ensures the clear reading in any operating conditions; The Impeller is the only moving parts in contact with water permitting the most reliable; The magnetic transmission movement with the maximum reliability; Non return valve to avoid the reserve flow could be optional; Metallic can capsule register for IP68 water proof could be optional
DIMENSION:

Size	Dn15
L	165
L1	259
D	G3/4B
d	R1/2
H	103
H1	174
W	82

PARAMETER:

Size	mm	Dn15
R	Q3/Q1	80/100/125
Q4	m3/h	3.125
Q3	m3/h	2.5
Q2	l/h	32/40/50
Q1	l/h	20/25/31.25
Ks (Start flow rate)	l/h	8
Nominal pressure	PN	16
Pressure Loss at Q3	bar	<0.4
Pressure Loss at Q4	bar	< 1.0
Statics pressure	bar	25
Max. Reading	m3	99999.9999
Min. Reading	Liter	0.05
Max. Pressure	MAP	MAP16
Max. Temperate	ºC	T30 or T50
Flow profile sensitivity classes		U0,D0
Installation position		Horizontal

PERFORMANCE ACCURATE TOLERENCE:
From Q1 (include) ~ Q2 (excluded) is ± 5%;
From Q2 (include)to Q4(include) is ± 2%
for T30 and ± 3% f or T50 ;

---
