Product Description
Product Description

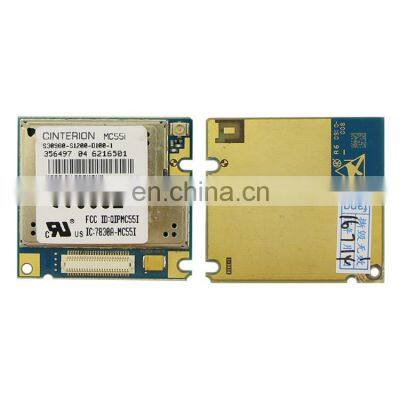

DescriptionGeneral features * Quad-Band GSM 850/900/1800/1900MHz * GPRS multi-slot class 10 * Compliant to GSM phase 2/2+ * Output power: - Class 4 (2 W) for EGSM850 - Class 4 (2 W) for EGSM900 - Class 1 (1 W) for GSM1800 - Class 1 (1 W) for GSM1900 * Control via AT commands (Hayes 3GPP TS 27.007, TS 27.005) * SIM Application Toolkit * TCP/IP stack access via AT commands * Internet Services: TCP Server/Client, UDP, HTTP, FTP, SMTP, POP3 * Supply voltage range: 3.3 ... 4.8 V * Power consumption typically: - Power down: 50 μA - Sleep mode (fully registered DRX = 9): 2.5 mA - Speech mode (850/900MHz): 260 mA - GPRS class 10 (850/900MHz): 450 mA * Operating Temperature Range: - -40°C to +70°C - Protective shutdown - Storage: -40°C to +85°C * Dimensions: 35 x 32.5 x 2.95 mm - (incl. B-to-B-Connector: 3.1 mm) - Weight: 5.5 gSpecification for GPRS data transmission * GPRS class 10: max. 86 kbps (DL) * Mobile station class B * PBCCH support * Coding schemes CS 1-4Specification for CSD data transmission * Up to 14.4 kbps * V.110 * Non-transparent mode * USSD supportSpecification for SMS * Point-to-point MO and MT * SMS cell broadcast * Text and PDU modeSpecification for voice * Triple-rate codec for HR, FR, and EFR * Adaptive multi-rate AMR * Basic hands-free operation * Echo cancellation * Noise reductionSpecification for fax * Group 3, class 2 and class 1Special features * RIL driver for Microsoft® Windows Mobile™ based devices * Multiplex driver for Microsoft® Windows XP™ and Microsoft® Windows Vista™ * Customer IMEI as variantInterfaces * U.FL-R-SMT 50 Ω antenna connector * Antenna solder pad * 50-pin board-to-board connector - Power supply - Audio: 2 x analog, 1 x digital - SIM card interface 1.8 V, 3 V - 2 x serial interface (ITU-T V.24 protocol) - Battery chargerApprovals * R&TTE, FCC, UL, IC, GCF, PTCRB, CE * Local approvals and network operator certificationsWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
