Heat Shrinkable Bus Bar Tape for Cabinets Switchgears Transformers

Product Description

Heat shrinkable bus bar tape is made from radiation cross-linked polyolefin. The dual layer structure of insulation/hot melt adhesive effectively provides electric insulation and shock protection to bus bar up to 24KV. Widely used to protect irregular shape bus bar or connectors where tube products can not be applied.

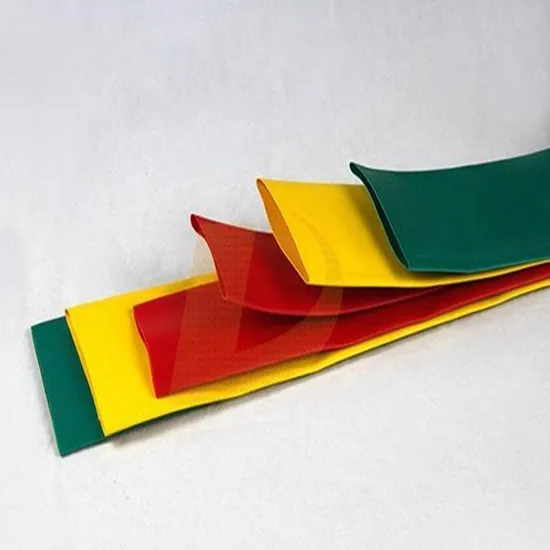

Standard colors are red, yellow, greeen, and black.

Specification	before shrinkable width	before shrinkable wall thickness	length(m)
MPT-1	25	1.0±0.1	5
MPT-2	50	1.0±0.1	5
MPT-4	100	1.0±0.1	5

Supply, heat shrinkable busbar insulation protection tape, composite insulation heat shrinkable tape, clad tape, heat shrinkable tape. Properties and applications: made from radiation crosslinked polyolefin materials. Double-layer design of insulation layer and hot melt adhesive can provide effective insulation and seismic protection for bus bar which is higher than 24KV. This product is extremely soft and easy to handle and maintain. It is widely used in the protection of multiple bus connectors. Contraction ratio: 30% , working temperature: -55 ° C-+ 105 ° C contraction temperature: 100 ° C Environmental Protection Standard: RoHS standard color: black, red, yellow, green

Project	Test method	Technical specifications
Expansion strength	ASTM D 638	≥11.8MPa
Thermal aging expansion strength	ASTM D 2671/120ºC/168h	≥10MPa
Elongation at break	ASTM D 638	5.5
Thermal aging elongation at break	ASTM D 2671/120ºC/ 168h	≥450%
Electrical breakdown strength	IEC 243	≥20KV/mm
Electric breakdown constant	IEC 250	Bigger3.0
Volume resistivity	IEC 93	1013Ω .cm
Flammability (oxygen index)	IEC4589	<0.5
Copper Corrosion	ASTM D 2671	120ºC, 168h
Water Absorption	ISO 62/23ºC,14d	≤0.5%

Specifications	Width before contraction	Anterior wall thickness of contraction (mm)	Standard length
	(mm)		m
BIT-1	25	1.0±0.1	5m/v
BIT-2	50	1.0±0.1	5m/v
BIT-4	100	1.0±0.1	5m/v
BIT-5	25	0.8±0.1	5m/v
BIT-6	50	0.8±0.1	5m/v
BIT-8	100	0.8±0.1	5m/v

---
