Woodworking Machinery Wood Disc Chipper Machine Log Chipping Machine for Paper Particleboard Making Machine Production Line

Product Description

Product Description
INTRODUCTION:

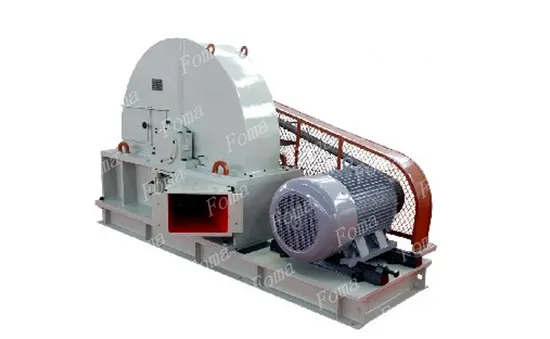

The series of disc chipper machine are suitable for wood chips preparation in the paper pulp, wood-based panel industries, as well as the chip production bases, by which logs and small wood are cut into high quality chips with even length, smooth chip cut and uniform chip thickness. It is also possible for the chipping of branches and twigs, as well as planks, etc. The chipper consists of frame, knife disc, feed and discharge spout, hood and electrical control system, etc. The chips length is adjustable in accordance with the requirement of the paper pulp, particle board and fiberboard industries. Compact in structure, easy for operation and maintenance, high capacity, excellent quality of chips, as well as low energy consumption, all these features contributes to the fact that it is ideal equipment for chip production for various applications.
MAIN FEATURES
- Adaptable to various chip length requirements for paper, fiberboards and particleboards
- Compact structure and easy operation
- High capacity
- Low power consumption
- Reliable quality, easy operations and maintenance
Detailed Photos

SPEC.	BX1710	BX1112	BX1212	BX1216	BX1218	BX1220	BX1225
DISC dia (mm)	950	1220	1200	1600	1800	2060	2490
Feeding port dia (mm)	207×190	400×275	300×300	545×325	460×420	600×550	650×615
Material max dia(mm)	100	200	200	300	300	450	450
Capacity (m³/h solid)	5.5-8	15-20	15-20	25-45	85	110-130	160
Motor power (kw)	75	110	90/110	220/250	500	500	2×315
Fittable production line capacity		3-50000m³/a		5-80000m³/a	5-1000000m³/a	10-150000m³/a	200000m³/a

Packaging & Shipping
Standard export shipping packages, well protected goods from rust and damage.
- Wooden case
- Wooden pallet
- Steel pallet
Company Profile
COMPANY PROFILE
Suzhou SUFOMA Machinery Co., Ltd., is a wholly-owned subsidiary of China Foma (Group) Co., Ltd. (CFMC). CFMC, as a parent company of ZHONGFOMA and SUFOMA, responsible for all their international export business of wood-based panel machinery by CFMC Overseas Business Department. CFMC is the leading manufacturer of chips preparation, defibrator, knife-ring flaker, dryer, forming line, sanding machine and CTS systems in wood-based panel industry. And also, is the leading supplier of complete production lines of PB, MDF / HDF boards and OSB boards. In recent years, CFMC has taken the initiative to research and develop its own continuous flat press production line, which is the peak of wood-based panel industry. CFMC has also possessed innovation and integration capabilities in wood-based panel machinery industry and has been the general contractor of the complete and advanced solutions in wood processing industry.

COMPANY CULTURE
MANUFACTURING CAPACITY
Customer photo
USER PLANTS SHOW
WHY CHOOSE CHINA FOMA (CFMC) ?
• One stop, whole plant solution supplier for MDF / HDF, OSB and Particle board.

• More than 160 production lines of PB / OSB / MDF / HDF board running on market.
• More than 40 years experience in wood-based panel field.
• Over 150 engineers and technicians for R&D and customer service.
• Over 3000 sets wood panel sanding machine and 2000 sets wood chipping machine running on market.
• Wholly state-owned enterprise, a reliable partner.
• 24-hour quick feedback for technical questions and service.

---
