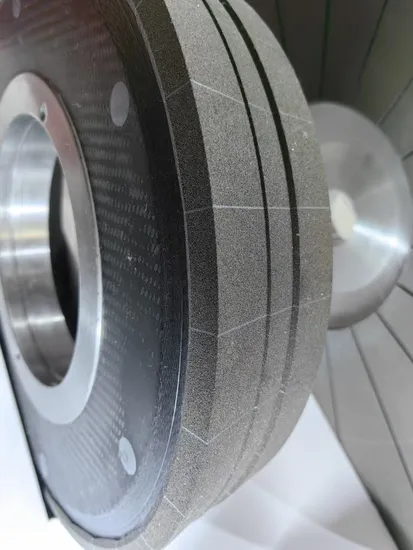

Resin Bond Diamond Wheels, Phenolic and Polyimide. Double Side Grinding Discs

Product Description

Our factory is one of leading company in the manufacturing industry of abrasive tools, grinding wheels, cutting, ceramic grinding wheels, synthetic resin bonded grinding wheels, cut-off wheels, diamond and CBN super abrasive tools since 1961
Our products including:
Resinoid Diamond & CBN wheels
Vitrified Diamond & CBN wheels
Electroplated Diamond & CBN Tools
Hybrid Diamond & CBN wheels
Diamond & CBN Wheels for Round Tools, drills, end mills and reamers
Diamond & CBN Wheels for grinding tungsten carbide tipped saw blades and one-piece HSS saws
Tool grinding Wheels For surface grinding and tool & cutter grinding
Center less Grinding Wheels
Cylindrical Grinding Wheels
Surface Grinding Wheels
Tool room Grinding Wheels
Internal Grinding Wheels
Nut Inserted Disc Grinding Wheels
Roll Grinding Wheels
Heavy Duty Grinding Wheels
Our factory is one of the leading abrasives manufacturer with ISO9001: 2000 certificate in China. We specialise in the production of high quality diamond & CBN grinding wheel...
Our grinding tools ( diamond & cbn grinding wheel ) for the machining of hard materials comprise the complete range of international used shapes and geometries.
The tools are mainly used in the following bonding systems:
Resin Bond
Uncomplicate grinding operations with good material removal rates are typical for resin bonds. The mechanical and thermal influence on the workpiece is very low. A wide range of special adapted bonds are available
For periphery and top & bottom grinding of indexable inserts, grooving tools and wear parts
For CNC tool grinding of TC drills and cutters
For cutting and OD grinding of TC rods
For flat grinding of wear plates
Sintered Metal Bond
These extremely wear resistant and profile consistent bonds are used for
Profile grinding operations
Crushing (profiling method)
Periphery grinding of indexable inserts (special open bonds)
Grinding of flutes in TC drills and cutters (special bonds in sonor-line)
Grinding of polycrystalline materials like PCD and PCB (CBN) with soft bonds (see below)
Vitrified Bond
The advantage of the vitrified bond is the excellent cutting ability and profile ability combined with good wear and profile resistance. The fine vitrified bonding structure is specially suitable for wheels with micro grit diamond. Vitrified diamond grinding wheels are increasingly used for
Grinding of polycrystalline materials like PCD and PCB (CBN) (see above)
Profile grinding of TC threading plates (including crushing)
OD grinding of paper rolls, shafts and rods
Flat grinding of ceramic components
Electroplated (Galvanic) Bond
Electroplated grinding tools stand out due to extraordinary good cutting ability. Balancing the low life time which is caused by the single diamond layer, the tools can be replated several times. Main applications are:
Grinding of slots in hard materials
Various profile grinding operations
Cutting of ceramic parts (e. G. Catalysts)

---
