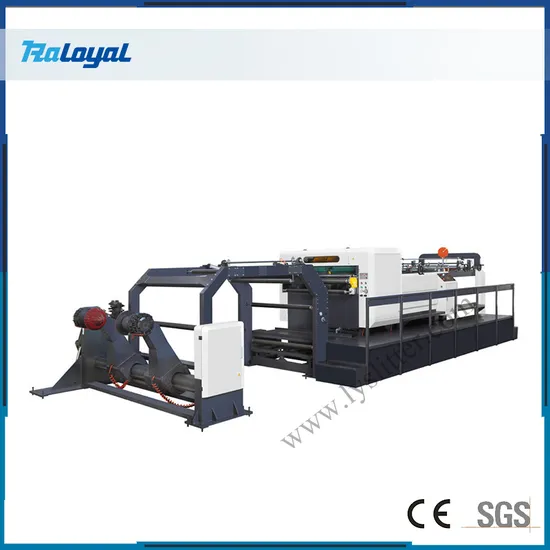

China High Speed Paper Rotary Blade Sheeter Machine with Automatic Stacker

Product Description

Technical parameter

Model	LYH-1400	LYH-1700
Reference weight of cutting paper	50-550g/m2	50-550g/m2
Max.Diameter of paper	1800mmMax	1800mmMax
Max.Width of paper	1400mm(55'')Max	1700mm(67'')Max
Total power	25KW	28KW
Cutting length	400-1600mm	400-1600mm
Cutting accuracy	+/-0.2mm	+/-0.2mm
Maximum cutting speed	300cuts/min	300cuts/min
Maximum cutting meter speed	300m/min	300m/min
Atmospheric pressure	0.8MPa	0.8MPa
Power supply	380V/50HZ/3Phases	380V/50HZ/3Phases
Total weight	11000kg	13000kg
Dimensions	12m×3.9m×2.35m	12m×4.2m×2.35m

Use
This series of servo-controlled paper sheeting machine is special for processing jumbo rolls packing material into required size, such as paper board, chrome paper, laser paper, kraft paper, printing paper, gold paper, silver paper, alu. foil paper, laminated paper, carton, etc. It is widely used in the paper processing and printing packing industry.
Features
The automatic roll unwinding unit is equipped with hydraulic shaftless roll stands: two clamps and a pneumatic braking system, which are easy to use during roll manipulations Adopts JAPANESE SMC proportional valve It adopts ITALY PHASE servo motor and GERMANY KEB servo drivers for controlling constant-length cutting. It adopts SIEMENS PLC control and contact screen operation, keeps the whole equipment's program and circuit control stable and runs without accident. It adopts #45 heavy-duty steel body to ensure smooth operation and long lifetime. It adopts Switzerland EHRE timing belt . It has the functions of high speed, can reach 300 cuts/min. Conveyor belt adopts Holland Rapplon Belt. Once the data of program set, it will not need admend any more,which is very friendly for the worker operation and serve labor cost. More detail
Packing and shipping
Sheeting machine in client factory
Certifications
Company Profile

Our Advantages
Why us
------R&D
Loyal engineers focus on the innovation of the paper straw forming continuously.
We combine powerful construction and aesthetic characteristic, while maintaining the highest standard of quality.
------Q&A
In order to supply products of high consistently high quality and reliability, Loyal staff strengthen Quality Assurance protocols and procedures as important part of overall quality, safety management.
------Detail
Care about every details to improve our dear customers operation efficiency and convenience.
------After-sale service
Loyal team will respond clients inquiry or questions within 24 hours.
Contact us without hesitate! We are willing to send you in greater detail!

---
