5 Axis CNC Router Twin Table for Milling Cutting Trimming CE Approved

Product Description

Machine description

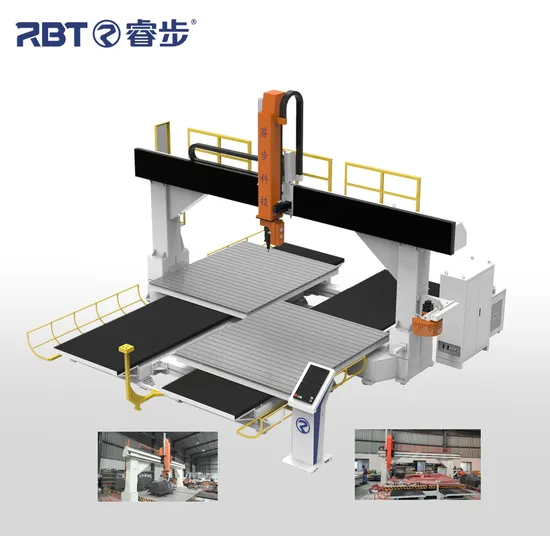

Rbt 5 Axis CNC Router Twin Table for milling, cutting and trimming CE Approved
The 5-Axis Twin Table CNC Router is a CE-certified apparatus crafted for detailed carving, engraving, cutting, trimming, milling, and shaping tasks. It boasts two separate work tables to enhance productivity, enabling one to be loaded or unloaded while the other is in operation. Fitted with a swift spindle for quick material elimination and a sturdy control mechanism for exactness, it is well-suited for an array of substances including plastic, composites, honeycomb, aluminum, wood, foam, resin etc. This sophisticated CNC router guarantees elevated output and exceptional craftsmanship.
Machine Parameters

No.	items	parameter	No.	items	parameter
1	product name	FIVE AXIS TWIN TABLE CNC ROUTER	9	Z axis maximum speed	20m/min
2	model	RB-F6-2520-Z08	10	Repeat accuracy (within 300mm)	±0.05mm
3	X axis effective stroke	2500mm	11	voltage	380V
4	Y axis effective stroke	2000mm	12	total power	14.5KW
5	Z axis effective stroke	820mm	13	spindle power	5.5KW(customizable)
6	B-axis rotation angle	±130°	14	Frequency	50HZ
7	C-axis rotation angle	±540°	15	weight	4.1T
8	X/Y axis maximum speed	35m/min	16	size	L3482*W3350*H3768mm

Machine details with photos
1. The five-axis cnc router with twin table operates by driving the tool along five coordinate axes, allowing for three-dimensional movement and precise cutting of challenging materials. This enables the production of highly accurate contours and profiles in the shortest possible time. Additionally, the machine can complete multi-face processing in a single clamping operation.
2. The SYNTEC five-axis linkage CNC system is utilized in this system. This machine combines power, speed, and precision, and can be enhanced with various functions such as dust collection, automatic tool changing, and RTCP.
3. This cnc router is capable of processing thermoformed plastic or composite material products, performing three-dimensional or multidimensional cutting, drilling, trimming, and other operations on uniquely shaped objects.
4. The RBT five-axis cnc router features an imported double swing head spindle, which allows for fast and precise movement with a 360° swing angle.
5. An optional 8-station tool magazine can be added to the machine, enabling automatic and rapid tool replacement.
6. There are two independent cutting platforms on the left and right. When one platform is working, the worker can unload and load the product on the other platform. It can largely save the loading time and increase the production efficiency . When process large workpieces, the left and right stations can be processed simultaneously as a single working table and the processing size of a single product is doubled in the X-axis direction.

Machine Application
Twin table five-axis cnc router is applicable to punching, cutting and trimming:
Composite materials: carbon fiber (PCM/RTM/SMC/LFT, etc.), glass fiber, carbon/carbon, etc.;
Plastics: ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, Acrylic etc.;
Other non-metal material: high-density sponge, Styrofoam foam, wood, substitute wood, stone, plaster etc
Twin table five-axis cnc router is widely used in:
Mold manufacturing, composite material processing, and thick sheet thermoforming processing in industries such as aerospace, rail transit, automotive interior and exterior, sporting goods, medical beauty, white goods, handicrafts, and sanitary ware.
Successful Case:
Certifications
CE Certified 5 axis cnc router with twin table
Our Advantages
1. Company Strength: With advanced 5-axis machining centers and automated production lines, we ensure large-scale production and efficient operation. 2. R&D Capability: Professional R&D team, constantly promoting technological innovation, quickly responding to market changes and customer requirement, and leading the development of industry technology. 3. Production and Manufacturing Capability: With an experienced team of technicians and engineers, we focus on every detail from design to production. 4.Quality Control Capability: Strict quality management system, full monitoring of the production process, to ensure zero defects in products.All of our 5-axis CNC machines are calibrated with laser interferometers to ensure machining accuracy and reliability. 5. After-sales Service Capability: Provide comprehensive technical support and fast-response after-sales service to protect customer interests. 6. Industry Experience: After 20 years of deep cultivation in the industry, we have accumulated rich manufacturing experience and can cope with various industry challenges.
Packaging & Shipping
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
