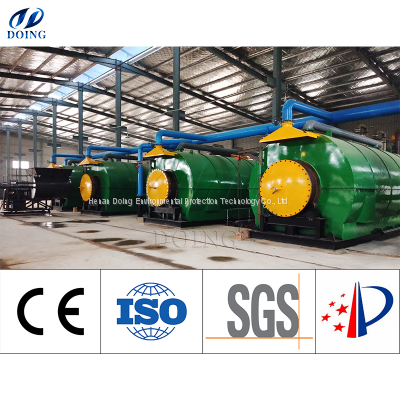

DOING COMPANY PYROLYSIS PANT
The continuous type and batch type pyrolysis plants designed by Doing Company’s engineer team have been exported to the United States, the United Kingdom, France, Italy, Australia, Dubai, Brazil, Kazakhstan, Pakistan, India, Nigeria, Mexico, Egypt, Thailand and other 90+ countries and regions. Their outstanding economic and environmental benefits have led the development of the waste tire/plastic/oil sludge/rubber/aluminum plastic composite material pyrolysis industry. The whole process is safe and environmentally friendly. For details, please contact our professional project manager for consultation.
Product Paramenters
Scheme 1: small scale free installation pyrolysis plant unit
Scheme 2: cost effective batch type pyrolysis plant
Items
| Batch Pyrolysis Plant
|
Equipment type
| DY-1-6
| DY-1-10
| DY-1-12
|
Raw material
| Waste plastics, tyres
| Waste plastics, tyres
| Waste plastics, tyres
|
Structural form
| Horizontal rotation
| Horizontal rotation
| Horizontal rotation
|
24-hour Capacity
| 6 ton
| 10 ton
| 12 ton
|
Oil yield
| 2.7-3.3ton
| 4.5 -5.5ton
| 4.8 -6.6ton
|
Operating pressure
| Normal
| Normal
| Normal
|
Material of pyrolysis Reactor
| Q245R
| Q245R
| Q245R
|
Thickness of pyrolysis Reactor
| 16mm
| 16mm
| 16mm
|
Rotate speed of pyrolysis Reactor
| 0.4turn/minute
| 0.4turn/minute
| 0.4turn/minute
|
Total power
| 15KW
| 15KW
| 15KW
|
Mode of cooling
| Water cooling
| Water cooling
| Water cooling
|
Cooling area of condenser
| 100sqm
| 100sqm
| 100sqm
|
Kind of transmission
| Internal gear drive
| Internal gear drive
| Internal gear drive
|
Noise dB(A)
| ≤85
| ≤85
| ≤85
|
Size of Reactor(D×L)
| 2200×6000
| 2600×6600
| 2800×6600
|
Working form
| Intermittent operation
| Intermittent operation
| Intermittent operation
|
Delivery time
| 20days
| 20days
| 20days
|
Weight
| 27T
| 32T
| 35T
|
Scheme 3: New design continuous type pyrolysis plant
Item
| Continuous Pyrolysis Plant
|
Model
| DY-C-30
| DY-C-50
| DY-C-100
|
Cpacity
| 30T/D
| 50T/D
| 100T/D
|
Power
| 65Kw
| 80Kw
| 120Kw
|
Working type
| Continuous
|
Reactor deisgn
| Mutiple reactors (The quantity and size depends on the raw material condition)
|
Rotating
| Internal rotating
|
Cooling system
| Recycled waster cooling
|
Reactor material
| Q245R/Q345R boiler plate
|
Heating method
| Indireact hot air heating
|
Heating fuel
| Fuel oil/gas
|
Feedstock
| Waste tire/plastic/rubber
|
Output
| Fuel oil, carbon black
|
Raw Materials & Oil Yields
Waste oil processing process
Project Case
Customer Feedback
Our services
Company Profile
DOING HOLDINGS CO., Ltd
Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.
Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.
>>
