24AWG 4 Paris FTP Cat5e Cable LAN Cable Network Cable

Product Description

24AWG 4 Paris FTP Cat5e Cable LAN Cable Network Cable
1000FT Bulk FTP cat5e ethernet cable
Specification: 4P
* Rated Temperature: -40° C ~ + 75° C
* Unshielded twisted pairs
* Conductor: 23AWG or 24AWG Stranding or Solid Bare copper
* Filler: PE Cross or FM-PE Thin slice
* Drain Wire: 23AWG or 24AWG Stranding or Solid Tinned copper
* Outer Shielded: AL-Mylar 100 %(min) coverage

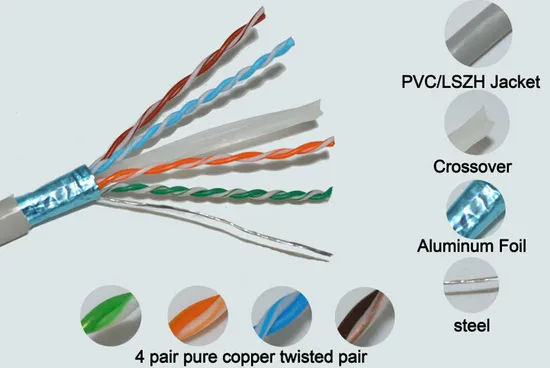

1) Structure:
Conductor: 0.57mm solid bare copper
PE insulation
Insulation Dia. (+-0.05mm): 1.02mm
FR/PVC or LSOH jacket
2) Standard: ISO/IEC 11801, TIA/EIA 568B
3) Application: 10 base T, ATM, Ethernet, token ring, TP-PMD audio, telephone and multimedia networks
Electrical Properties:
Impedance: 100 Ohmn +/-15 @ 1-100 Mhz
Mutal Capacitance (max. ): 5.5 pF/100m
Capacitance Unbalance: 330 pF/100m
DC Resistance (max. ): 9.38 Ohm/100m
Resistance Unbalance (max. ): 5%
Velocity Ratio (nom. ): 65%
All products pass the American FLUCK-DTX-1800 Test, RoHS Environment Test, CE, Certification and ISO9001
Applications:
1. Computer Network Outdoor Cabling Project.
2. Broadband Network Communication.
3. Digital ISDN Network and ATM 155Mbps Network
4. Ethernet Network
Uses:
The horizontal twisted cable use in digital communication, which using in the cabling between the communication lead out end and the connect area wire frame in the building or dwelling house synthesis cabling system work area. In order to meet the different requirements of users, this cable define into STP and UTP.
STP cable will be free from outside interference and reduce error, STP cable general used in hospitals, Telecommunications, airport and etc. This cable's standard cabling long is 90 m, and using the T568A or T568B installed method.
Testing
1. Ralated temperature: 60° C.
2. Rated voltage: 300V.
3. Standard: TIA/EIA 568B, ETL and 3P standards.
4. CMR combustion testing and CSA FT4 Flame Tsst.
5. Electrical characteristics: Conductor impedance of less than 9.38Ω /100/M(20° C).
6. Conductor unbalanced impedance of less than 5%.
7. Characteristic impedanc: 100± 15%Ω (1-100MHZ pm).
We can supply following materials and styles for you to choose
1. Type: Cat4/5/5e/6/6e/7.
2. Material: Tin-copper, Bare Copper, Copper Clad Steel, Copper Clad Aluminumetc.
3. Conductor Gauge: 26/24/23AWG etc.
4. Color: Beiji, Grey, white, blue, orange etc.
5. Length: 1-305M etc.
6. OD: 5.0-6.5MM etc.

Model	CAT5E FTP Cable
Conductor Size	24AWG
	0.48mm/0.49mm/0.5mm/0.51mm etc.
Conductor Material	CCA/CCU/BC
Nuber Of Conductor	4P
Shield	UTP/FTP
Flammability Grade	CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material	PE,HDPE,LSZH PE
Insulation Thickness	0.91mm
Jacket Material	PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness	5.2mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000 MΩ.km
Transmission Velocity	65%
Operating Temperation	-40 °C - +75 °C
PVC Jacket Color	As client's request.
Marking On Jacket	On your request (Print your brand)

---
