Datang Welding Direct Manufacture End Face Milling Machine

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
DX
Type
Face Milling Machine
Object
Sheet
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Standard
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
End-Face Machining Rage(mm)
1200*1500
Horizontal Milling Speed(mm/Min)
50-440
Vertical Milling Speed (mm/Min)
22-550
Milling Head Size
Tx32A
Suitable Milling Facer Diameter(mm)
125-360
Color
Blue
Delivery Time
Timely
Current
Standard
Voltage
as Per Customers′ Requirements
Product Name
China Manufacturer Dx1215 Face Milling Machine
Transport Package
Wooden /Container/as Per Customers′ Requirements
Specification
CE, ISO
Trademark
Datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
50 Sets Per Month

Product Description

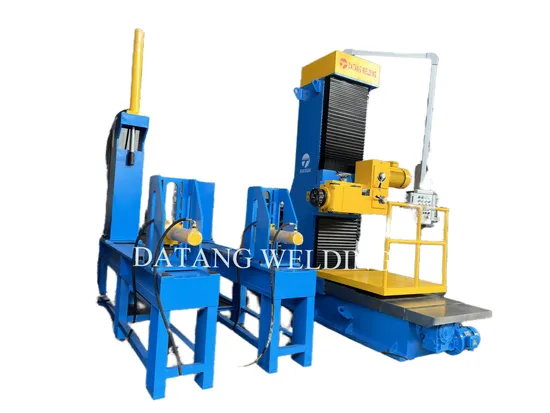

China Manufacturer Face Milling Machine

The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system
,electrical control system,rail protection device,tools,etc.
This machine is used yo mill the end face of Box-beam and H-beam,and the degree of milling head can be adjusted manually
in vertical direction to bevel the end face.The hydraulic support rack for choice can fix the beam and is open top,which is easy
for hoisting.

Main technical parameter
Model DX-0810 DX-0812 DX-1212 DX-1215 DX-1520 DX-2020 DX-2025 DX-2040 DX-3060

End-face Machining rage(mm)		 800*1000 800*1000 1200*1200 1200*1500 1500*2000 2000*2000 2000*2500 2000*4000 3000*6000

Horizontal milling speed(mm/min)		 50-440 50-440 50-500

Vertical milling speed (mm/min)		 22-550 22-550 22-600

Milling angle(°)		 0-45

Milling head specifications		 TX25A TX32A TX40A TX50A

cutter rotational speed(rpm)		 125-1420 125-1440 1440 1460

Applicable cutter diameter(mm)		 100-160 125-250 160-320 200-400
