AAAC Aluminum Alloy Conductor AAC Steel Reinforced 0.6/1kv Overhead ABC Cable

Product Description

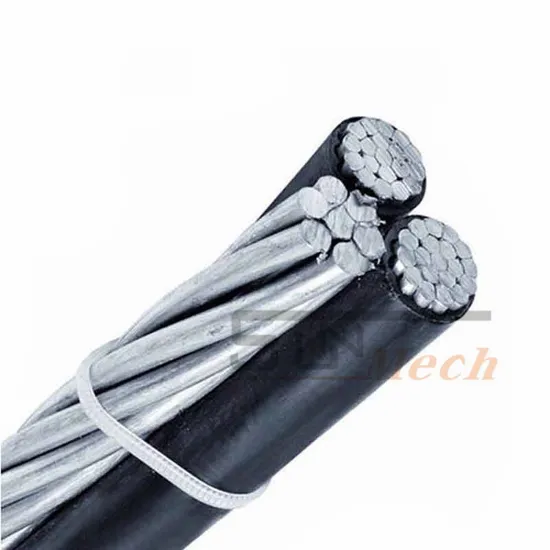

ABC CABLE product introduction
Applications Single-phase and three-phase ABC cables mainly provide 120V-600V power transmission for rural power grids, construction sites and urban street lighting. The product voltage level is: 0.6 / 1KV
Product structure The phase conductor uses 1350-H19 conductors which are concentrically twisted and compact. The phase conductor insulation adopts weather-resistant cross-linked polyethylene (XLPE). The insulation material has good anti-ultraviolet and anti-aging properties.
Production standards IEC 61089-1997 Round wire concentric stranded overhead conductor SANS 1418-1: 2009 Overhead bunched conductor system SANS 1418-2: 2009 Overhead bunched conductor system

PRODUCT TEST REPORT Description Aerial bundled conductor specification ABC 3*50+54.6 Standar IEC 61089 SANS 1418 Quantity 855.6km No. Properties Standard requirements Unit Test results Determine 1 Manufacturer SMC SMC √ 2 Nominal voltage(U0/U) 0.6/1 kV 0.6/1 √ 3 Phase Conductor 3.1 Number of cores 7 7 √ 3.2 Cross section 50 mm² 50 √ 3.3 Diameter of conductor 7.9~8.4 mm 8.2 √ 3.4 Nominal Thicknes 1.6 mm 1.7 √ 3.5 Minimum Thicknes 1.34 mm 1.53 √ 3.6 Diameter of core 11.1 mm 11.4 √ 3.7 DC resistance at 20 ºC.max 0.641 Ω/km 0.630 √ 4 Neutral Conductor 4.1 Conductor structure 7/3.15 No./mm 7/3.15 √ 4.2 Diameter of AL wire 3.15 mm 3.15 √ 4.3 Diameter of conductor 9.2~9.6 mm 9.45 - 4.4 Lay Direction Left Left √ 4.5 Rated Strength 16600 kN 16961 √ 4.6 Nominal Thicknes 1.6 mm 1.7 √ 4.7 Minimum Thicknes 1.34 mm 1.49 √ 4.8 Diameter of core 12.65 mm 12.68 √ 4.9 DC resistance at 20 ºC.max 0.63 Ω/km 0.59 √ 5 Cable 5.1 Diameter of bundle 27.8 mm 28.0 √ 5.2 Laying up direction Right Right √ 5.3 Lay length ≤950 mm 650 √ 5.4 Voltage test 3.5/5 kV/min 3.5/5 √ Results Comply with SANS 1418 standard and allow shipment.

APPLICATIONS
Aluminum conductor steel reinforced (ACSR) has a long service life due to its advantages such as economy, reliability, and low strength ratio. The light weight and high electrical conductivity of aluminum alloys combined with the strength of the steel core make it have higher tension, less depressions and longer spans than any other
alternative.

Code Name	kcmil Equivalent Size AWG or kcmil	Conductor Size	No. and diameter of wires		Outer Dimensions		Mass per km	Rated Strength	Calculated d.c resistance at 20º C
		AWG or kcmil	Aluminum	Steel	minor	major
			mm	mm	mm	mm	kg/km	kN	Ω/km
Swan / TP	1	4	6/2.12	1/2.12	6.35	12.70	171.29	16.46	0.6614
Swanate / TP	1	4	7/1.96	1/2.61	6.53	13.06	171.29	21.00	0.6542
Swallow / TP	1/0	3	6/2.38	1/2.38	7.14	14.27	215.98	20.47	0.5253
Sparrow / TP	2/0	2	6/2.67	1/2.67	8.03	16.05	271.09	25.18	0.4157
Sparate / TP	2/0	2	7/2.47	1/3.30	8.26	16.51	317.26	32.30	0.4111
Robin / TP	3/0	1	6/3.00	1/3.00	8.99	17.98	342.59	31.68	0.3297
Raven / TP	4/0	1/0	6/3.37	1/3.37	10.11	20.22	431.96	38.97	0.2612
Quail / TP	266.2	2/0	6/3.78	1/3.78	11.35	22.71	500.47	47.16	0.2077
Pigeon / TP	335.6	3/0	6/4.25	1/4.25	12.75	25.50	686.66	58.73	0.1647
Penguin / TP	423.2	4/0	6/4.77	1/4.77	14.30	28.60	866.89	74.30	0.1306
Jaeger / TP	456.4	228.2	18/2.86	1/2.86	14.30	28.60	737.30	53.84	0.1234
Waxwing / TP	533.6	266.8	18/3.09	1/3.09	15.47	30.94	862.42	60.95	0.1056
Spoonbill / TP	533.6	266.8	22/2.80	7/1.55	15.85	31.70	956.26	77.42	0.1053
Scaup / TP	533.6	266.8	24/2.68	7/1.79	16.08	32.16	1023.29	88.98	0.1050
Partridge / TP	533.6	266.8	26/2.57	7/2.00	16.31	32.61	1093.29	100.55	0.1047
Junco / TP	533.6	266.8	30/2.40	7/2.40	16.76	33.53	1243.73	123.69	0.1037
Ostrich / TP	600.0	300.0	26/2.73	7/2.12	17.27	34.54	1228.84	113.01	0.0928
Merlin / TP	672.8	336.4	18/3.47	1/3.47	17.35	34.70	1087.34	77.42	0.0837
Trogon / TP	672.8	336.4	20/3.29	7/1.46	17.58	35.15	1127.55	84.53	0.0840
Woodcock / TP	672.8	336.4	22/3.14	7/1.74	17.81	35.61	1205.01	96.99	0.0837
Widgeon / TP	672.8	336.4	24/3.01	7/2.00	18.03	36.07	1289.91	111.23	0.0833
Linnet / TP	672.8	336.4	26/2.89	7/2.25	18.29	36.58	1377.79	125.47	0.0830
Oriole / TP	672.8	336.4	30/2.69	7/2.69	18.82	37.64	1568.44	153.94	0.0823
Chickadee / TP	795.0	397.5	18/3.77	1/3.77	18.87	37.74	1283.95	88.54	0.0709
Ptarmigan / TP	795.0	397.5	20/3.58	7/1.59	19.10	38.20	1333.10	98.77	0.0709
Stork / TP	795.0	397.5	22/3.41	7/1.90	19.35	38.71	1423.96	114.79	0.0709
Brant / TP	795.0	397.5	24/3.27	7/2.18	19.61	39.22	1523.76	129.92	0.0705
Ibis / TP	795.0	397.5	26/3.14	7/2.44	19.89	39.78	1628.02	145.04	0.0702
Lark / TP	795.0	397.5	30/2.92	7/2.92	20.47	41.25	1852.94	180.64	0.0696
Pelican / TP	954.0	477.0	18/4.14	1/4.14	20.68	41.35	1541.63	105.00	0.0591
Tailorbird / TP	954.0	477.0	20/3.92	7/1.74	20.90	41.81	1599.72	116.57	0.0591
Toucan / TP	954.0	477.0	22/3.74	7/2.08	21.18	42.37	1709.95	135.26	0.0591
Flicker / TP	954.0	477.0	24/3.58	7/2.39	21.49	42.98	1827.62	153.05	0.0587
Hawk / TP	954.0	477.0	26/3.44	7/2.67	21.79	43.59	1954.23	173.52	0.0584
Hen / TP	954.0	477.0	30/3.20	7/3.20	22.43	44.86	2223.83	211.78	0.0581
Heron / TP	1000.0	500.0	30/3.28	7/3.28	22.96	45.92	2331.07	222.46	0.0554
Nightingale/TP	1034.0	517.0	18/4.30	1/4.30	21.54	43.08	1669.73	113.01	0.0545
Creeper / TP	1034.0	17.0	20/4.08	7/1.81	21.79	43.59	1733.78	126.36	0.0545
Osprey / TP	1113.0	556.5	18/4.47	1/4.47	22.33	44.65	1797.83	121.91	0.0505
Tody / TP	1113.0	556.5	20/4.24	7/1.88	22.61	45.21	1866.35	136.15	0.0509
Sapsucker / TP	1113.0	556.5	22/4.04	7/2.24	22.89	45.77	1994.44	156.61	0.0505
Parakeet / TP	1113.0	556.5	24/3.87	7/2.58	23.22	46.43	2132.97	176.19	0.0502
Dove / TP	1113.0	556.5	26/3.72	7/2.89	23.55	47.09	2278.94	201.10	0.0502
Eagle / TP	1113.0	556.5	30/3.46	7/3.46	24.21	48.41	2593.22	247.38	0.0499
Kittiwake / TP	1192.0	596.0	18/4.62	1/4.62	23.11	46.23	1925.93	130.81	0.0472
Skua / TP	1210.0	605.0	20/4.42	7/1.96	23.57	47.14	2028.70	147.71	0.0466
Peacock / TP	1210.0	605.0	24/4.03	7/2.69	24.21	48.41	2319.15	192.21	0.0463
Squab / TP	1210.0	605.0	26/3.87	7/3.01	24.54	49.07	2478.53	216.23	0.0463
Wood Duck/ TP	1210.0	605.0	30/3.60	7/3.60	25.25	50.50	2819.63	257.16	0.0459
Teal / TP	1210.0	605.0	30/3.60	19/2.16	25.25	50.50	2795.79	266.95	0.0459
Swift / TP	1272.0	636.0	36/3.38	1/3.38	23.62	47.24	1915.50	122.80	0.0443
Kingbird / TP	1272.0	636.0	18/4.78	1/4.78	23.88	47.75	2054.02	139.70	0.0443
Turacos / TP	1272.0	636.0	20/4.53	7/2.01	24.16	48.31	2132.97	154.83	0.0443
Rook / TP	1272.0	636.0	24/4.14	7/2.76	24.82	49.63	2278.94	201.10	0.0440
Grosbeak / TP	1272.0	636.0	26/3.97	7/3.09	25.15	50.29	2438.31	224.24	0.0440
Scoter / TP	1272.0	636.0	30/3.70	7/3.70	25.88	51.77	2605.14	270.51	0.0436
Egret / TP	1272.0	636.0	30/3.70	19/2.22	25.88	51.77	2940.28	280.30	0.0436
Siskin / TP	1333.2	666.6	20/4.64	7/2.06	24.74	49.48	2235.74	162.84	0.0423
Flamingo / TP	1333.2	666.6	24/4.23	7/2.82	25.40	50.80	2554.49	211.78	0.0420
Gannet / TP	1333.2	666.6	26/4.07	7/3.16	25.76	51.51	2730.26	234.92	0.0420
Dunlin / TP	1431.0	715.5	20/4.8	7/2.13	25.60	51.21	2399.59	174.41	0.0394
Stilt / TP	1431.0	715.5	24/4.39	7/2.92	26.31	52.68	2742.17	226.91	0.0390
Starling / TP	1431.0	715.5	26/4.21	7/3.28	26.70	53.39	2931.34	252.71	0.0390
Redwing / TP	1431.0	715.5	30/3.92	19/2.35	27.46	54.91	3306.69	307.88	0.0387
Coot / TP	1590.0	795.0	36/3.77	1/3.77	26.42	52.83	2393.63	148.60	0.0354
Macaw / TP	1590.0	795.0	42/3.50	7/1.94	26.80	53.59	2554.49	178.86	0.0354
Turbit / TP	1590.0	795.0	20/5.06	7/2.25	27.00	54.00	2666.21	193.99	0.0354
Tern / TP	1590.0	795.0	45/3.38	7/2.25	27.00	54.00	2666.21	196.65	0.0354
Puffin / TP	1590.0	795.0	22/4.83	7/2.68	27.36	54.71	2849.42	220.68	0.0354
Cuckoo / TP	1590.0	795.0	24/4.62	7/3.08	27.74	55.47	3047.52	248.27	0.0351
Condor / TP	1590.0	795.0	54/3.08	7/3.08	27.74	55.47	3047.52	250.93	0.0351
Drake / TP	1590.0	795.0	26/4.44	7/3.45	28.14	56.29	3256.05	280.30	0.0351
Mallard / TP	1590.0	795.0	30/4.13	19/2.48	28.96	57.91	3674.60	341.70	0.0348
Surfbird / TP	1749.0	874.5	20/5.31	7/2.36	28.32	56.64	2932.83	210.89	0.0322
Turnstone / TP	1800.0	900.0	20/5.39	7/2.40	28.73	57.45	3017.73	214.45	0.0315
Ruddy / TP	1800.0	900.0	45/3.59	7/2.40	28.73	57.45	3017.73	217.12	0.0315
Canary / TP	1800.0	900.0	54/3.28	7/3.28	29.51	59.03	3449.69	283.86	0.0312
Catbird / TP	1908.0	954.0	36/4.14	1/4.14	28.96	57.91	4362.75	176.19	0.0295
Phoenix / TP	1908.0	954.0	42/3.83	7/0.98	29.34	58.67	3065.39	208.22	0.0295
Corncrake/ TP	1908.0	954.0	20/5.55	7/2.47	29.59	59.18	3199.45	227.80	0.0295
Rail / TP	1908.0	954.0	45/3.70	7/2.47	29.59	59.18	3199.45	230.47	0.0295
Towhee / TP	1908.0	954.0	48/3.58	7/2.79	29.85	59.69	3343.93	253.60	0.0295
Redbird / TP	1908.0	954.0	24/5.06	7/3.38	30.38	60.76	3656.73	298.10	0.0292
Cardinal / TP	1908.0	954.0	54/3.38	7/3.38	30.38	60.76	3656.73	300.77	0.0295
Canvasback /TP	1908.0	954.0	30/4.53	19/2.72	31.70	63.42	4410.41	410.22	0.0292
Snowbird / TP	2067.0	1033.5	42/3.99	7/2.21	30.56	61.11	3321.59	226.02	0.0272
Ortolan / TP	2067.0	1033.5	45/3.85	7/2.57	30.78	61.57	3466.07	246.49	0.0272
Whooper / TP	2067.0	1033.5	48/3.73	7/2.90	31.06	62.13	3622.47	274.07	0.0272
Curlew / TP	2067.0	1033.5	54/3.51	7/3.51	31.62	63.25	3960.58	326.13	0.0272
Avocet / TP	2226.0	1113.0	42/4.14	7/2.30	31.70	63.40	3576.29	241.15	0.0253
Bluejay / TP	2226.0	1113.0	45/4.00	7/2.66	31.98	63.96	3732.69	265.17	0.0253
Bullfinch / TP	2226.0	1113.0	45/4.00	7/2.66	32.23	64.47	3901.00	291.87	0.0253
Finch / TP	2226.0	1113.0	54/3.65	19/2.19	32.84	65.66	4256.99	347.93

For more specs of ABC cable, plz contact us.
