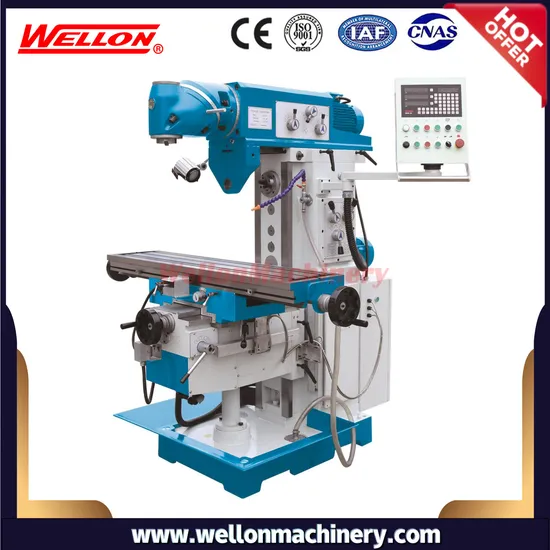

Cheaper Universal Milling Machine XQ6432C

Product Description

Product Description

Cheaper Knee Type Universal Milling Machine X6432
Detailed Photos

Product Parameters

Performence Features:
1. XQ6432 features X Y Z auto feed by Servo Motor.
2. Universal swivel head can mill any angle surface through front half-sphere.
3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision
process.
4. 3-axis Digital Readout, Rotary table, Protective cover are available.
Technical parameter:

Description	UNIT	XQ6432C
Table size	mm	1370*320
X/Y/Z travel	mm	1000*360*400
Max rotary angle of table	°	±45°(Optional )
Max table weight	Kg	300
T-slots(NO./width/pitch)	mm	3*14*80
Shaft speed series and range	rpm	V 45-1660(11steps) H 35-1500 (12steps)
arm	mm	460
distance between spindle center line -table	mm	75-475
distance between spindle nose - table surface		260-660
distance between spindle nose and arm	mm	180
Spindle taper		7:24 IS040,
table rapid speed(X/Y/Z)	MM	1335,1335,1000
Table feed(X/Y/Z)	mm	X,Y:30-830 (8 steps) Z:23-625 (8 steps)
Main motor power	KW	V:3kw H:3kw
Feed motor	KW	3 axes using a 15N.m servo motor,auto feed and change speeds variably
Dimensions	mm	1900*1750*1900
Machine weight	kg	1950

Standard accessories:

Draw bar

Mill arbors

Coolant device

Coolant tray

Universal mill head

Automatic central lubrication

Tools

Mill chuck set

Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head F11-125A
Swivel worktable

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
