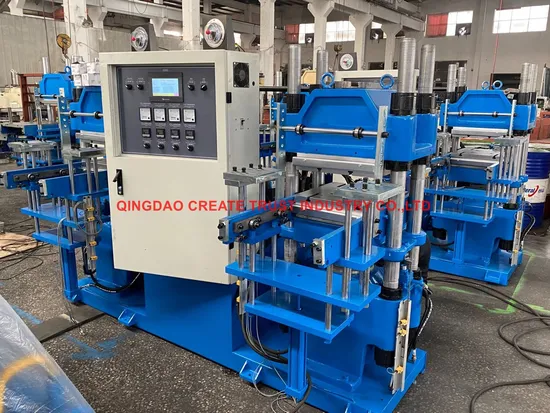

China Top Quality Rubber Vulcanizing Press with PLC Control System (CE/ISO9001)

Product Description

Model No.: CX200T
Name : Rubber vulcanizing press,Rubber press,Rubber vulcanizing machine, Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
Flow of machine motions:

Initial state →Put the material into the mould, reposit the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→Vulcanization start →Vulcanization finish→Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→Take out the product
Features :
1. The main moving platen raises rapidly, clamps slowly, declines rapidly, close mould fast turn to slow and exhaust fast turn to slow can be adjusted respectively, production efficiency is improved. (except XLB/400).
2. Hydraulic system configuration is more reasonable and reliable. when products are vulcanizing, oil pump and motor stop working, and has automatic pressure compensation function and oil pump stands with delay.
3.Exhaust time, exhaust frequency, heating temperature and vulcanizing time can be setted, convenient for operation. There are two work mode with manual and semi automatic mode.
4.There are two work modes with manual and semi automatic mode.To meet the requirements of special rubber material, there are two working mode.ordinary plate vulcanizing press; transfer mould working mode.
5.The hydraulic cylinder uses our own patent technology of oil cylinder composite sealing device (patent nu.ZL03220060.3), with reliable seals technology and long life.
6.The electric system adopts full computer control, it is more convenient, accurate and reliable for operation. Users can choose PLC control and 5.7-inch touch-control screen imported from Siemens or Mitsubishi.The oil tank adopts the patent technology of flip board structure open tank (patent nu.ZL200620105181.5), it saves time and effort for maintenance , more human-friendly.
Parameters below :

Model		CX-100B	CX-Y100A	CX-160T	CX-200T	CX-250T	CX-350T
Mold-locking force(KN)		1000	1000	1600	2000	2500	3500
Max. working pressure(Mpa)		21	21	23	21	21	23
Block stroke(mm)		300	300	300	300	400	500
hermo-plate size(mm)	Electricity hot plate emigration	450*450	500*500	520×540	600×600	700×750	1050×1000
	pinban/liangan	450*450	500×500	500×540	550×600	680×750	980×1000
Max.distance of thermo-plate(mm)		300-480	300-480	300-480	300-480	400	500
Motor power(kw)		4+2.2	4+2.2	4+2.2	5.5+3	5.5+3	5.5+5.5

Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
