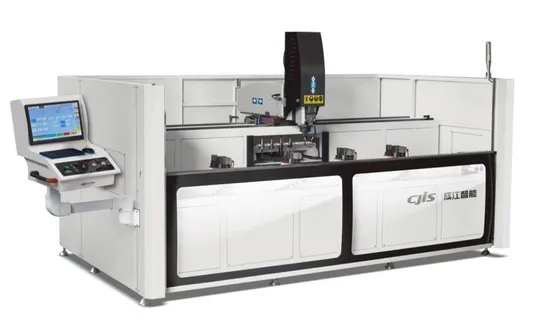

Aluminum Profile Drilling Machine Automatic Aluminum Profile High-Speed CNC Machining Center

Product Description

Product Description
1.Suitable for processing round holes, slots, lock holes, irregular holes in aluminum-plastic profiles, as well as milling, chamfering, and flat engraving of aluminum profiles. Automatic tool change, standard with a 6-position tool magazine for simpler processing.
No skilled worker required, operates online with software, automatic processing via scanning.
2.The worktable can be flipped, allowing for milling of three faces in one clamping operation.
3.Equipped with a standard graphics library for direct import of graphics to generate machining programs.
4.5.5kW Shenyi spindle motor, high torque, processing efficiency twice that of a regular drilling and milling machine.
5.Unique chip removal design, equipped with a bottom chip tray for a cleaner work environment.
6.Features a closed protective cover with automatic lifting, ensuring high safety performance.
7.Standard guide screw automatic lubrication device to extend the machine's lifespan.
8.Standard automatic maintenance reminder function to proactively address equipment issues and improve equipment utilization.
Detailed Photos

Product Parameters

Input power supply:	380V/50Hz
Total power:	7.2kW
Spindle power:	5.5kW
Spindle speed:	18,000rpm
Working air pressure:	0.5~0.8MPa
X-axis lateral travel:	3,000mm
Y-axis longitudinal travel:	400mm
Z-axis vertical travel:	300mm
X-axis feed rate:	0~97m/min
Y-axis feed rate:	0~30m/min
Z-axis feed rate:	0~30m/min
Number of fixtures:	6
Processing range:	140×140×3,000mm
Surface roughness of cutting surface:	Ra12.5μm
Dimensions:	4,300×2,200×2,000mm
Weight:	Approximately 3,000kg

Company Profile
Shandong Chengjiang CNC Technology Co., Ltd is a high-end intelligent equipment manufacturing company that integrates research, production, and sales. We specialize in the research, development, manufacturing, and sales of intelligent industrial aluminum processing equipment, aluminum door and window equipment, aluminum curtain wall equipment, and plastic door and window equipment. Our outstanding research and development team and professional technical staff have laid a solid foundation to ensure the production of high-quality equipment. Chengjiang is dedicated to creating the most advanced door, window, and curtain wall processing equipment in China.

Our Advantages
Shandong Chengjiang CNC Technology Co., Ltd. is a door and window processing equipment company integrating industry and trade. Has the following advantages:
1. It has a casting workshop and an assembly workshop and can accept product customization.
Our company's equipment processing has a complete production line, from the processing of raw materials to the polishing, casting and painting of parts, all are carried out in the foundry workshop. After the parts are processed, they are transported to the assembly workshop for assembly and debugging. We have many years of experience in door and window equipment processing. Our company can accept customization requirements with different technical conditions and can customize production according to customer needs, including equipment length, equipment parameters, equipment color, etc.
2. Reduce costs, increase efficiency, and control quality.
The integration of industry and trade can integrate production and sales links, optimize the supply chain, reduce costs, and improve efficiency. Since the production and sales links are within the same company, product quality can be better controlled to ensure that products meet standards.
3. Professional technical R&D team with multiple patents.
The company has established a professional technical R&D team of more than 10 people, specializing in product R&D and improvement, and has multiple invention patents and its own intellectual property rights. And the technical personnel responsible for processing and assembly all have more than 10 years of work experience and strictly control product quality.
After Sales Service
Pre-sale service
Free contact for the most suitable machine
Free professional design for each customer especially. After sale service 24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 14 years' focusing on Upvc,Aluminum Window and Doors Equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.

---
