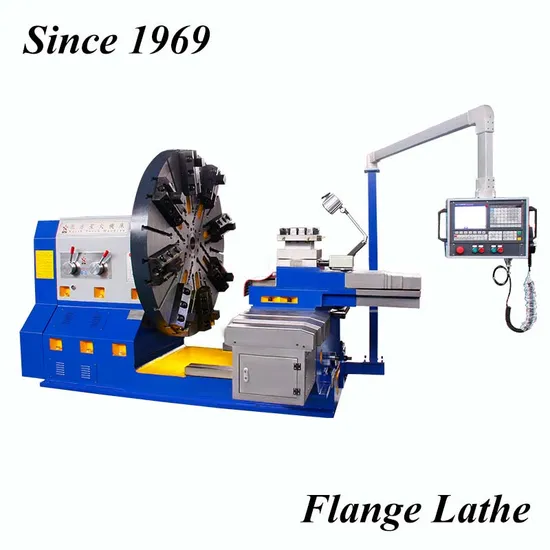

Professional Horizontal CNC Lathe for Turning 3000 mm Diameter Flange, Mold, Wheel

Product Description

3000 mm Swing Diameter Professional Horizontal CNC Lathe with milling drilling functions
For Turning Milling and Drilling 3000 mm diameter Flange, wheel, Bearing, Tube Plate,Tire Mold,Wheel Hub Turbine, Flange,Oil Pan,Shaft,etc

Outstanding Characteristics:
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional) per customer 's request.
Professional machining equiments like 18 meter gantry Grinding Machine from Taiwan, Quenchining Furnace for hardness of castings.
Reasonable structure.High performance with low cost
Customized design and production
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Technical Parameters of flange facing cnc lathe , horizontal lathe, lathe machine

CK60 Floor Type Flange turning facing CNC Lathe
	Model	Unit	CK6016	CK6020	CK6025	CK6030
	Brand		NTM	NTM	NTM	NTM
Machining Technical Parameters	Max.swing diameter over machine bed	mm	1600	2000	2500	3000
	Max.swing diameter over cutting tool carriage	mm	1250	1600	2000	2500
	Max.work-piece weight	T	2T		3T
	Max.work-piece length	mm	500		750
Machine Bed Parameters			Stepless variable frequency
	Spindle Speed	r/min	10-156		4-106
Headstock	Main Motor	KW	15		18.5	22
	Chuck Diameter	mm	1250	1600	2000	2500
	Main motor power	knm	20			40
	Max.X Axis stroke	mm	800	1000	1250	1500
	Max.Z Axis stroke	mm	500		750
Feed Data	Feed range of X Axis	mm/min	1-200
	Feed range of Z Axis	mm/min	1-200
	Rapid moving range of X Axis	mm/min	2000
	Rapid moving range of Z Axis	mm/min	1500
Other Data	Machine Length	mm	3500	3500	4500	4500
	Machine Width	mm	2500	2800	3200	3500
	Machine Height	mm	1800	2000	2500	3000
	Control System		SIEMENS, FANUC, GSK,KND etc

Rermarks:
1. The above 8 models of Floor-type CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features.
2. This series Flor-type CNC Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. After-sale Service and Maitenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!

---
